Q-6704S000M018I

Active

Amphenol Custom Cable

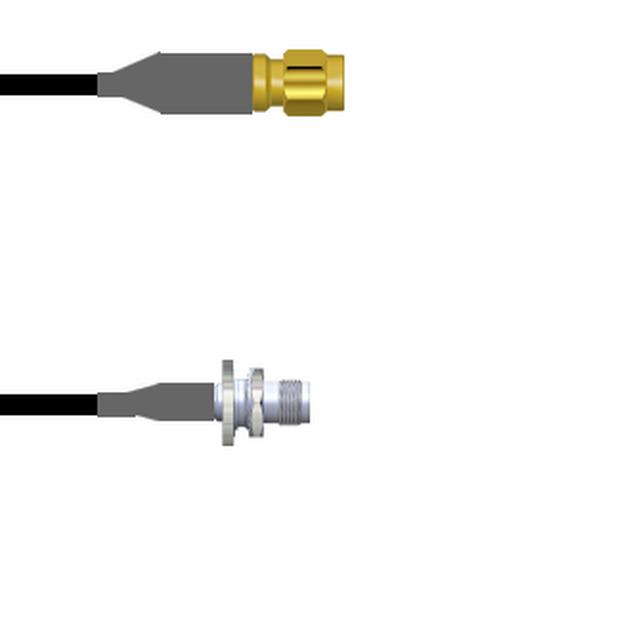

COAX CBL RP-SMA TO TNC 18"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL RP-SMA TO TNC 18"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-6704S000M018I

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	LMR 240
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	RP-SMA to TNC

Part	Overall Impedance	1st Connector	Length [x]	Length [x]	Cable Type	Frequency - Max [Max]	2nd Connector Mounting Feature	Features	2nd Connector Mounting Type	1st Contact Gender	Connector Impedance	1st Connector Mounting Type	Style	Color	Cable Impedance	2nd Contact Gender	2nd Connector
Amphenol Custom Cable Q-6704S000M018I	50 Ohms	RP-SMA Plug	457.2 mm	457.2 mm	LMR 240	6000 MHz	Bulkhead - Front Side Nut	Shielded	Panel Mount	Female	50 Ohms	Free Hanging (In-Line)	RP-SMA to TNC	Black	50 Ohms	Female	TNC Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to TNC LMR 240 18.00" (457.20mm)
