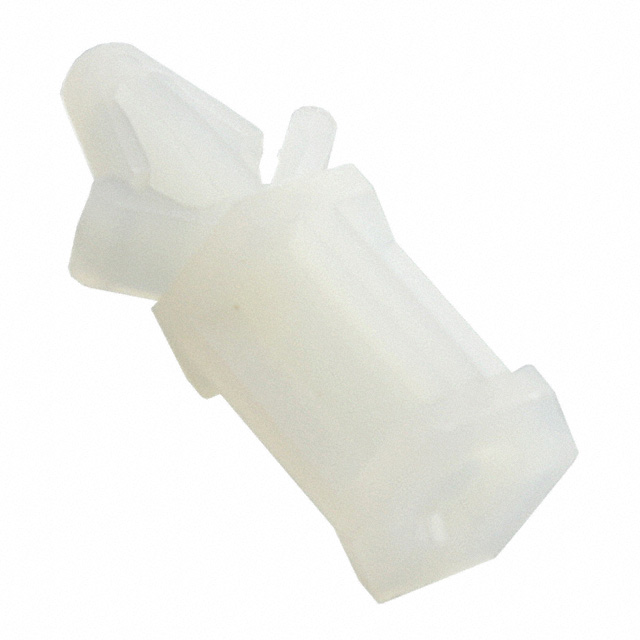

R6513-00

Obsolete

Harwin Inc.

12.70MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

Harwin Inc.

12.70MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R6513-00

Between Board Height	12.8 mm
Between Board Height	0.504 in
Holding Type	Snap Lock
Material	Nylon
Mounting Hole Diameter [diameter]	3.6 mm
Mounting Hole Diameter [diameter]	0.142 "
Mounting Type	Screw Mount
Support Hole Diameter [diameter]	0.157 "
Support Hole Diameter [diameter]	3.99 mm
Support Panel Thickness	1.6 mm
Support Panel Thickness	0.063 in

Part	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Support Panel Thickness	Support Panel Thickness	Between Board Height	Between Board Height	Holding Type
Harwin Inc. R6513-00	Screw Mount	3.6 mm	0.142 "	Nylon	0.157 "	3.99 mm	1.6 mm	0.063 in	12.8 mm	0.504 in	Snap Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.21
Newark	Each	1000	$ 0.18

General part information

Board Support Snap Lock / Screw Mount Nylon 0.504" (12.80mm)
