Q-0402V0005006F

Active

Amphenol Custom Cable

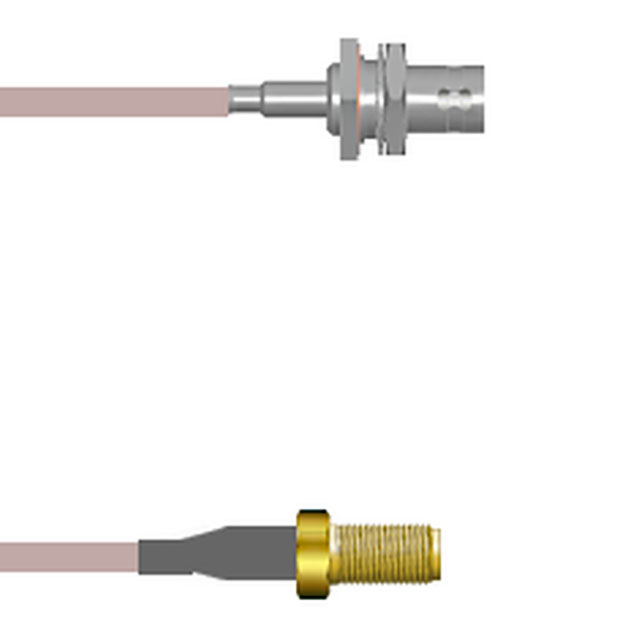

COAX CABLE BNC TO SMA 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0402V0005006F

Active

Amphenol Custom Cable

COAX CABLE BNC TO SMA 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0402V0005006F

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0402V0 Series

Part	Style	1st Connector Mounting Type	Overall Impedance	2nd Connector	1st Connector Mounting Feature	2nd Connector Mounting Type	Cable Type	Color	1st Contact Gender	Length	Length	Frequency - Max [Max]	Features	2nd Contact Gender	1st Connector	Connector Impedance	Length	Cable Impedance	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0402V0003.75M	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-174	Black	Female	29.53 "	750 mm	4 GHz	Shielded	Female	BNC Jack
Amphenol Custom Cable Q-0402V0003012i	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-174	Black	Female	12 "	304.8 mm	4 GHz	Shielded	Female	BNC Jack
Amphenol Custom Cable Q-0402V0005006F	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-316	Copper	Female	72 in	1.8 m	4 GHz	Shielded	Female	BNC Jack	50 Ohms	6 ft	50 Ohms
Amphenol Custom Cable Q-0402V0005003M	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-316	Copper	Female	118.1 in	3 m	4 GHz	Shielded	Female	BNC Jack	50 Ohms	9.8 '	50 Ohms
Amphenol Custom Cable Q-0402V00032.5M	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-174	Black	Female	98.4 in	2.5 m	4 GHz	Shielded	Female	BNC Jack		8.2 '
Amphenol Custom Cable Q-0402V0003009i	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-174	Black	Female	9 "	228.6 mm	4 GHz	Shielded	Female	BNC Jack
Amphenol Custom Cable Q-0402V0003.25M	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-174	Black	Female			4 GHz	Shielded	Female	BNC Jack				9.843 "	250 mm
Amphenol Custom Cable Q-0402V0005108i	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-316	Copper	Female	108 in	2.7 m	4 GHz	Shielded	Female	BNC Jack	50 Ohms	9 ft	50 Ohms
Amphenol Custom Cable Q-0402V0003018i	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-174	Black	Female			4 GHz	Shielded	Female	BNC Jack					457.2 mm	457.2 mm
Amphenol Custom Cable Q-0402V0003060i	BNC to SMA	Panel Mount	50 Ohms	SMA Jack	Bulkhead - Front Side Nut	Free Hanging (In-Line)	RG-174	Black	Female	5 '	1.5 m	4 GHz	Shielded	Female	BNC Jack		5 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 107.82
		25	$ 105.70
		50	$ 103.58
		100	$ 101.46
		250	$ 99.34

Description

General part information

Q-0402V0 Series

Cable Assembly Coaxial BNC to SMA RG-316 72.0" (1.8m) 6.0'
