ET0301500000G

Active

Amphenol Anytek

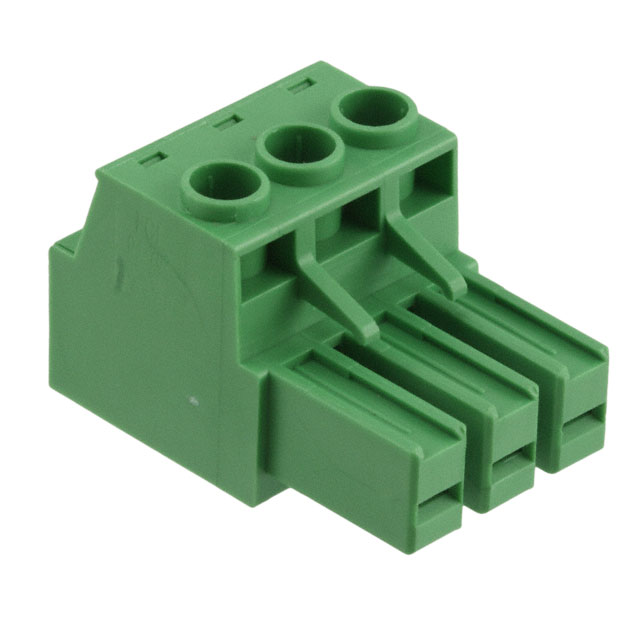

TERM BLOCK PLUG 3POS 7.62MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ET0301500000G

Active

Amphenol Anytek

TERM BLOCK PLUG 3POS 7.62MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ET0301500000G

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	32 A
Housing Material	Thermoplastic Resin
Insulation Height [z]	0.902 "
Insulation Height [z]	22.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Positions Per Level	3
Screw Size	M3.5
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²
Wire Strip Length [Max]	11 mm
Wire Strip Length [Min]	10 mm

ET Series

Part	Pitch [x]	Pitch [x]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Contact Material	Mounting Type	Number of Levels	Current - UL	Termination Style	Wire Strip Length [Max]	Wire Strip Length [Min]	Torque - Screw	Torque - Screw	Contact Mating Finish	Features	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Screw Size	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Color	Housing Material	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions
Amphenol Anytek ET0301020000G	0.3 in	7.62 mm	Blade Sockets Plug	24 AWG	8 AWG	5	Copper Alloy	Free Hanging (In-Line)	1	32 A	Screw - Rising Cage Clamp	7 mm	6 mm	0.79 Nm	7 Lb-In	Tin	Mating Flange Retention Latches (Non-Wire Side)	10 mm²	2.5 mm²	M3.5	UL94 V-0	0.902 "	22.9 mm	Black	Thermoplastic Resin	300 V	-40 °C	115 °C
Amphenol Anytek ET1501500000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	15	Copper Alloy	Free Hanging (In-Line)	1	32 A	Screw - Rising Cage Clamp	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin		10 mm²	2.5 mm²	M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic Resin	300 V	-40 °C	115 °C	15
Amphenol Anytek ET0201500000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	2	Copper Alloy	Free Hanging (In-Line)	1	32 A	Screw - Rising Cage Clamp	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin		10 mm²	2.5 mm²	M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic Resin	300 V	-40 °C	115 °C	2
Amphenol Anytek ET1102520000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	11	Copper	Free Hanging (In-Line)	1	41 A	Screw	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin	Mating Flange Retention Latches (Non-Wire Side)			M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic		-40 °C	115 °C	11
Amphenol Anytek ET0302520000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	3	Copper	Free Hanging (In-Line)	1	41 A	Screw	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin	Mating Flange Retention Latches (Non-Wire Side)			M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic		-40 °C	115 °C
Amphenol Anytek ET1502500000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	15	Copper	Free Hanging (In-Line)	1	41 A	Screw	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin				M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic		-40 °C	115 °C	15
Amphenol Anytek ET1602500000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	16	Copper	Free Hanging (In-Line)	1	41 A	Screw	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin				M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic		-40 °C	115 °C		16
Amphenol Anytek ET0801520000G	0.3 in	7.62 mm	Blade Sockets Plug	24 AWG	8 AWG	8	Copper Alloy	Free Hanging (In-Line)	1	32 A	Screw - Rising Cage Clamp	7 mm	6 mm	0.79 Nm	7 Lb-In	Tin	Mating Flange Retention Latches (Non-Wire Side)	10 mm²	2.5 mm²	M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic Resin	300 V	-40 °C	115 °C	8
Amphenol Anytek ET0301500000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	3	Copper Alloy	Free Hanging (In-Line)	1	32 A	Screw - Rising Cage Clamp	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin		10 mm²	2.5 mm²	M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic Resin	300 V	-40 °C	115 °C
Amphenol Anytek ET0902500000G	0.3 in	7.62 mm	Plug Female Sockets	24 AWG	8 AWG	9	Copper	Free Hanging (In-Line)	1	41 A	Screw	11 mm	10 mm	0.79 Nm	7 Lb-In	Tin				M3.5	UL94 V-0	0.902 "	22.9 mm	Green	Thermoplastic		-40 °C	115 °C	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.59
		10	$ 1.85
		25	$ 1.62
		50	$ 1.47
		100	$ 1.34
		250	$ 1.21
		500	$ 1.13
		1440	$ 1.04
		5760	$ 0.96

Description

General part information

ET Series

3 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
