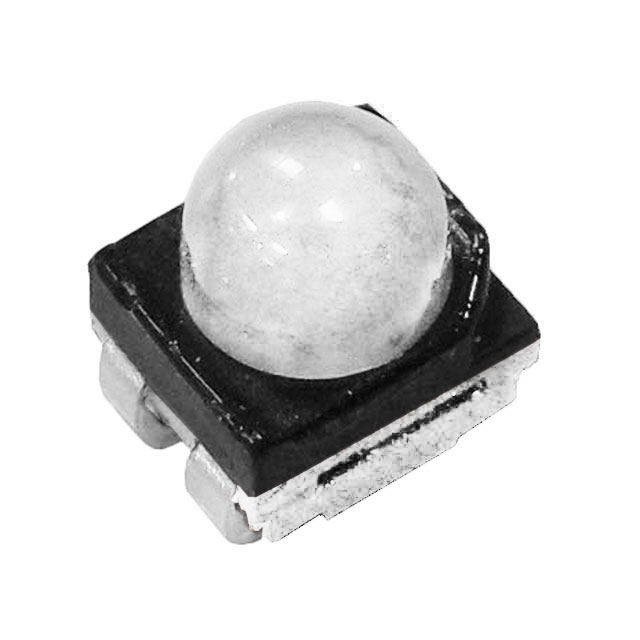

CLM2D-GPC-CB0E0793

Active

Cree LED

LED GREEN DIFFUSED 4PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CLM2D-GPC-CB0E0793

Active

Cree LED

LED GREEN DIFFUSED 4PLCC SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLM2D-GPC-CB0E0793

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	3.65 mm
Lens Color	White
Lens Size [diameter]	2.45 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	12550 mcd
Mounting Type	Surface Mount
Package / Case	4-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	4-PLCC
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	2.9 V
Wavelength - Dominant	525 nm

CLM2D Series

Part	Size / Dimension [y]	Size / Dimension [x]	Lens Style	Supplier Device Package	Millicandela Rating	Package / Case	Lens Transparency	Current - Test	Wavelength - Dominant	Height (Max) [Max]	Voltage - Forward (Vf) (Typ)	Lens Size [y]	Lens Size [x]	Mounting Type	Color	Height (Max) [Max] [z]	Lens Size [diameter]	Lens Color	Configuration	Viewing Angle
Cree LED CLM2D-AEC-CXAYA343	2.8 mm	3.2 mm	Rectangle with Domed Top	4-PLCC	2200 mcd	4-PLCC	Diffused	20 mA	590 nm	3.55 mm	2.2 V	2.8 mm	3.2 mm	Surface Mount	Amber
Cree LED CLM2D-GEC-CYBA0893	2.8 mm	3.2 mm	Rectangle with Domed Top	4-PLCC	4000 mcd	4-PLCC	Diffused	20 mA	528 nm	3.55 mm	2.8 V	2.8 mm	3.2 mm	Surface Mount	Green
Cree LED CLM2D-CCC-CYBC03123	2.8 mm	3.2 mm	Round with Domed Top	4-PLCC	7375 mcd	4-PLCC	Diffused	20 mA	506 nm		3.2 V			Surface Mount	Cyan	3.65 mm	2.45 mm
Cree LED CLM2D-GEC-CYAA0793	2.8 mm	3.2 mm	Rectangle with Domed Top	4-PLCC	4000 mcd	4-PLCC	Diffused	20 mA	528 nm	3.55 mm	2.8 V	2.8 mm	3.2 mm	Surface Mount	Green
Cree LED CLM2D-RCC-CA0C0BB3	2.8 mm	3.5 mm	Round with Domed Top		8500 mcd	4-SMD J-Lead	Diffused	20 mA	621 nm	3.72 mm	2 V			Surface Mount	Red		2.45 mm
Cree LED CLM2D-RCC-CZ0C0BB3	2.8 mm	3.5 mm	Round with Domed Top		8500 mcd	4-SMD J-Lead	Diffused	20 mA	621 nm	3.72 mm	2 V			Surface Mount	Red		2.45 mm
Cree LED CLM2D-GCC-CC0F0783	2.8 mm	3.5 mm	Round with Domed Top		15700 mcd	4-SMD J-Lead	Diffused	20 mA	528 nm	3.72 mm	2.9 V			Surface Mount	Green		2.45 mm
Cree LED CLM2D-BEC-CUBWA453	2.8 mm	3.2 mm	Rectangle with Domed Top	4-PLCC	900 mcd	4-PLCC	Diffused	20 mA	470 nm	3.55 mm	2.9 V	2.8 mm	3.2 mm	Surface Mount	Blue
Cree LED CLM2D-ACC-CZ0B0343	2.8 mm	3.2 mm	Round with Domed Top	4-PLCC	6750 mcd	4-PLCC	Diffused	20 mA	590 nm	3.72 mm	2.1 V			Surface Mount	Amber		2.45 mm	White
Cree LED CLM2D-GPC-CB0E0793	2.8 mm	3.2 mm	Round with Domed Top	4-PLCC	12550 mcd	4-PLCC	Diffused	20 mA	525 nm		2.9 V			Surface Mount	Green	3.65 mm	2.45 mm	White	Standard	30 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.20
		10	$ 0.19
		100	$ 0.18
		1000	$ 0.16
	Digi-Reel®	1	$ 0.20
		10	$ 0.19
		100	$ 0.18
		1000	$ 0.16
	Tape & Reel (TR)	2300	$ 0.16
		57500	$ 0.15

Description

General part information

CLM2D Series

Green 525nm LED Indication - Discrete 2.9V 4-PLCC
