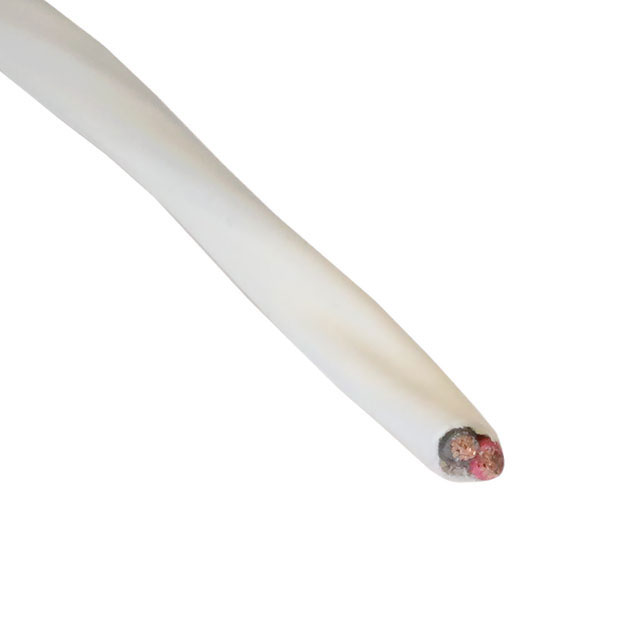

E3062S.41.86
ActivePrysmian Group
CABLE 2COND 12AWG NATURAL 25'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E3062S.41.86
ActivePrysmian Group
CABLE 2COND 12AWG NATURAL 25'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E3062S.41.86 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Bare |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [diameter] | 0.0185 in |
| Jacket (Insulation) Diameter [diameter] | 0.252 in |
| Jacket (Insulation) Diameter [diameter] | 6.4 mm |
| Jacket (Insulation) Material | Plenum, Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.015 in |
| Jacket (Insulation) Thickness | 0.381 mm |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Length [x] | 30.5 m, 7.62 m |
| Length [x] | 100 ft, 25 ft |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | 0 °C |
| Ratings | ASTM B-3 |
| Usage | Sound, Security, Alarm |
| Voltage | 300 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.28 | |
| 1 | $ 119.86 | |||
| 5 | $ 98.07 | |||
| 5 | $ 24.77 | |||
| 10 | $ 19.27 | |||
| 10 | $ 76.28 | |||
| Spool | 1000 | $ 0.48 | ||
| 2000 | $ 0.46 | |||
| 3000 | $ 0.44 | |||
| 5000 | $ 0.43 | |||
| 7000 | $ 0.42 | |||
| 10000 | $ 0.40 | |||
| 25000 | $ 0.38 | |||
Description
General part information
E3062S Series
2 Conductor Multi-Conductor Cable Natural 12 AWG 25.00' (7.62m)
