Q-0701V000R084i

Active

Amphenol Custom Cable

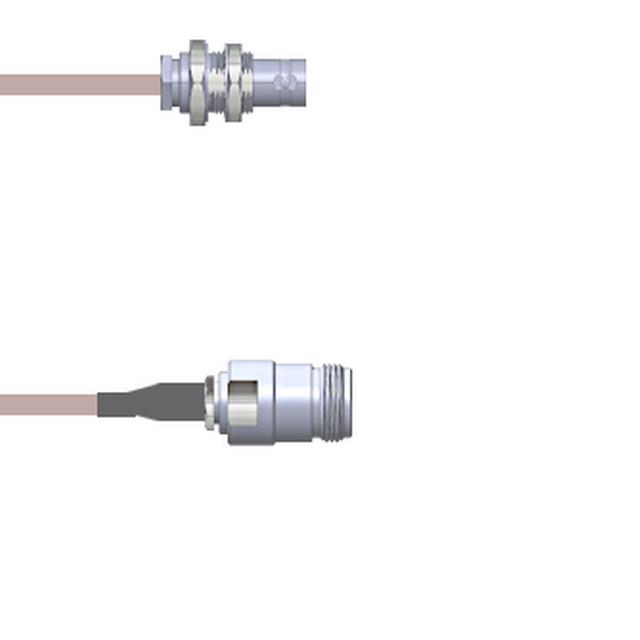

CBL ASSY BNC-NTYPE JACK-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0701V000R084i

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE JACK-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0701V000R084i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0701V0 Series

Part	Style	Length	Length	Length	1st Contact Gender	2nd Connector Mounting Type	Cable Type	1st Connector Mounting Feature	Features	Overall Impedance	1st Connector	Frequency - Max [Max]	2nd Contact Gender	Color	2nd Connector	1st Connector Mounting Type
Amphenol Custom Cable Q-0701V000R1.5M	BNC to N-Type	59.1 in	4.9 ft	1.5 m	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R072i	BNC to N-Type	72 in	6 ft	1.8 m	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R108i	BNC to N-Type	108 in	9 ft	2.7 m	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R084i	BNC to N-Type	84 in	7 ft	2.1 m	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R048i	BNC to N-Type	48 in	4 ft	1200 mm	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R006i	BNC to N-Type	6 in		152.4 mm	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R012i	BNC to N-Type	12 "		304.8 mm	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R2.5M	BNC to N-Type	98.4 in	8.2 '	2.5 m	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R009i	BNC to N-Type	9 "		228.6 mm	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount
Amphenol Custom Cable Q-0701V000R036i	BNC to N-Type	36 in		91.44 cm	Female	Free Hanging (In-Line)	RG-316 DB	Bulkhead - Front Side Nut	Shielded	50 Ohms	BNC Jack	2 GHz	Female	Copper	N-Type Jack	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 389.37
		25	$ 383.62
		50	$ 377.86
		100	$ 372.10
		250	$ 366.34

Description

General part information

Q-0701V0 Series

Cable Assembly Coaxial BNC to N-Type RG-316 DB 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
