Technical Specifications
Parameters and characteristics for this part
| Specification | 0230.375DRT3P |
|---|---|
| Approval Agency | UL, CSA, CE |
| Breaking Capacity @ Rated Voltage | 10 kA, 35 A |
| Current Rating (Amps) | 375 mA |
| DC Cold Resistance | 1.1685 Ohms |
| Melting I²t | 0.58 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Cartridge, Non-Standard (Axial) |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 0.177 " |
| Size / Dimension [diameter] | 4.5 mm |
| Size / Dimension [z] | 14.5 mm |
| Size / Dimension [z] | 0.571 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

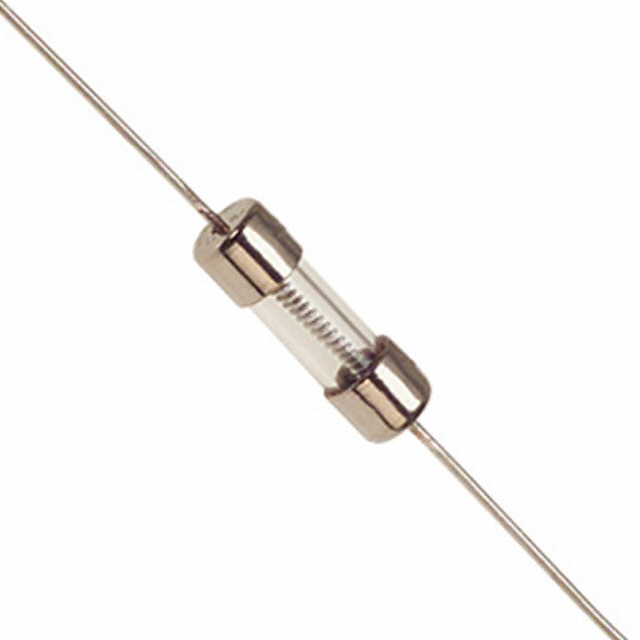

0230.375 Series
The 2AG Slo-Blo® Fuses are available in cartridge form or with axial leads. 2AG Fuses providing the same performance characteristics as their 3AG counterpart, while occupying one-third the space.
