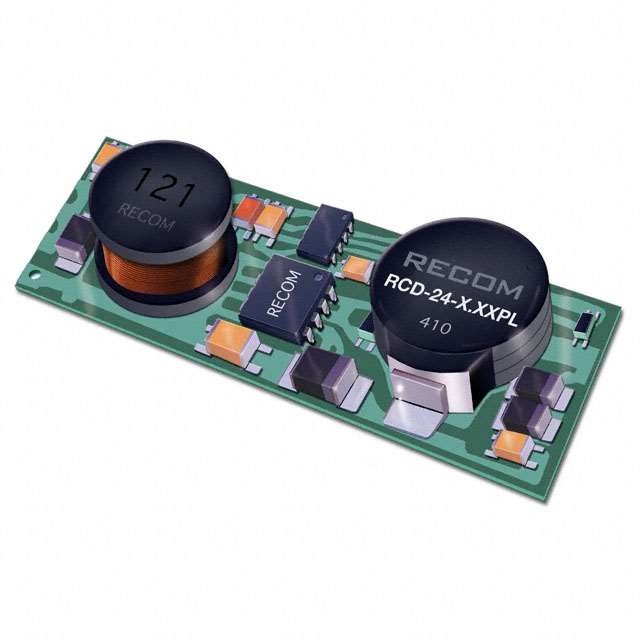

RCD-24-0.50/PL/B-R

Active

RECOM Power

LED POWER SUPPLIES 0.5A LED-DRIVER REG 4.5-36VIN 2-35VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RCD-24-0.50/PL/B-R

Active

RECOM Power

LED POWER SUPPLIES 0.5A LED-DRIVER REG 4.5-36VIN 2-35VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCD-24-0.50/PL/B-R

Approval Agency	EN
Current - Output (Max) [Max]	500 mA
Dimming	Analog, PWM
Efficiency	96 %
Features	Remote On/Off, SCP, OTP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	6-SMD
Power (Watts)	18 W
Size / Dimension [x]	1.22 in
Size / Dimension [x]	31 mm
Size / Dimension [y]	11.4 mm
Size / Dimension [y]	0.45 in
Size / Dimension [z]	0.26 "
Size / Dimension [z]	6.6 mm
Topology	Buck
Type	Constant Current
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output [Max]	35 V
Voltage - Output [Min]	2 V
Weight	1.81 g
Weight	0.004 lb

RCD-24PL Series

LED Power Supplies 0.35A LED-Driver REG 4.5-36Vin 2-35Vout

Part	Termination Style	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Mounting Type	Voltage - Input (Min) [Min]	Efficiency	Approval Agency	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Dimming	Voltage - Input (Max) [Max]	Features	Topology	Ratings	Type	Voltage - Output [Min]	Voltage - Output [Max]	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Package / Case
RECOM Power RCD-24-0.60/W/VREF	Wire Leads	0.49 in	12.6 mm	0.87 in	22.1 mm	8.5 mm	0.33 in	Chassis Mount	4.5 V	96 %	cULus	6.8 g	0.015 lb	-40 °C	75 ░C	Analog	36 V	SCP	Buck	IP67	Constant Current	2 V	35 V	1	21 W	600 mA
RECOM Power RCD-24-0.50/VREF		0.49 in	12.6 mm	0.87 in	22.1 mm	8.5 mm	0.33 in	Through Hole	4.5 V	96 %	cULus	4.54 g	0.01 lb	-40 °C	80 C	Analog	36 V	SCP	Buck		Constant Current	2 V	35 V	1	18 W	500 mA	6-DIP Module
RECOM Power RCD-24-0.50/W/X1	Wire Leads	0.49 in	12.6 mm	0.87 in	22.1 mm	8.5 mm	0.33 in	Chassis Mount	4.5 V	96 %	cULus	6.8 g	0.015 lb	-40 °C	80 C	Analog	36 V	SCP	Buck	IP67	Constant Current	2 V	35 V	1	18 W	500 mA
RECOM Power RCD-24-0.30/W/X2	Wire Leads	0.49 in	12.6 mm	0.87 in	22.1 mm	8.5 mm	0.33 in	Chassis Mount	4.5 V	96 %	cULus	6.8 g	0.015 lb	-40 °C	85 °C	PWM	36 V	Remote On/Off SCP	Buck	IP67	Constant Current	2 V	35 V	1	11 W	300 mA
RECOM Power RCD-24-0.30/PL/B		0.45 in	11.4 mm	1.22 in	31 mm	6.6 mm	0.26 "	Surface Mount	4.5 V	96 %	EN	1.81 g	0.004 lb	-40 °C	85 °C	Analog PWM	36 V	OTP Remote On/Off SCP	Buck		Constant Current	2 V	35 V	1	11 W	300 mA	6-SMD
RECOM Power RCD-24-0.30/PL/A-R		0.45 in	11.4 mm	1.22 in	31 mm	6.6 mm	0.26 "	Surface Mount	4.5 V	96 %	EN	1.81 g	0.004 lb	-40 °C	85 °C	Analog PWM	36 V	OTP Remote On/Off SCP	Buck		Constant Current	2 V	35 V	1	11 W	300 mA	6-SMD
RECOM Power RCD-24-0.60/W/X1	Wire Leads	0.49 in	12.6 mm	0.87 in	22.1 mm	8.5 mm	0.33 in	Chassis Mount	4.5 V	96 %	cULus	6.8 g	0.015 lb	-40 °C	75 ░C	Analog	36 V	SCP	Buck	IP67	Constant Current	2 V	35 V	1	21 W	600 mA
RECOM Power RCD-24-0.30/W/VREF	Wire Leads	0.49 in	12.6 mm	0.87 in	22.1 mm	8.5 mm	0.33 in	Chassis Mount	4.5 V	96 %	cULus	6.8 g	0.015 lb	-40 °C	85 °C	Analog	36 V	SCP	Buck	IP67	Constant Current	2 V	35 V	1	11 W	300 mA
RECOM Power RCD-24-0.50/PL/B-R		0.45 in	11.4 mm	1.22 in	31 mm	6.6 mm	0.26 "	Surface Mount	4.5 V	96 %	EN	1.81 g	0.004 lb	-40 °C	80 C	Analog PWM	36 V	OTP Remote On/Off SCP	Buck		Constant Current	2 V	35 V	1	18 W	500 mA	6-SMD
RECOM Power RCD-24-0.50		0.49 in	12.6 mm	0.87 in	22.1 mm	8.5 mm	0.33 in	Through Hole	4.5 V	96 %	cULus	4.54 g	0.01 lb	-40 °C	80 C	Analog PWM	36 V	Remote On/Off SCP	Buck		Constant Current	2 V	35 V	1	18 W	500 mA	6-DIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 16.22
	Digi-Reel®	1	$ 16.22
	Tape & Reel (TR)	400	$ 12.17
Sager	N/A	1	$ 13.36
		5	$ 12.93
		10	$ 12.33
		25	$ 11.97
		50	$ 11.80
		100	$ 11.45
		250	$ 10.70

Description

General part information

RCD-24PL Series

LED Power Supplies 0.35A LED-Driver REG 4.5-36Vin 2-35Vout
