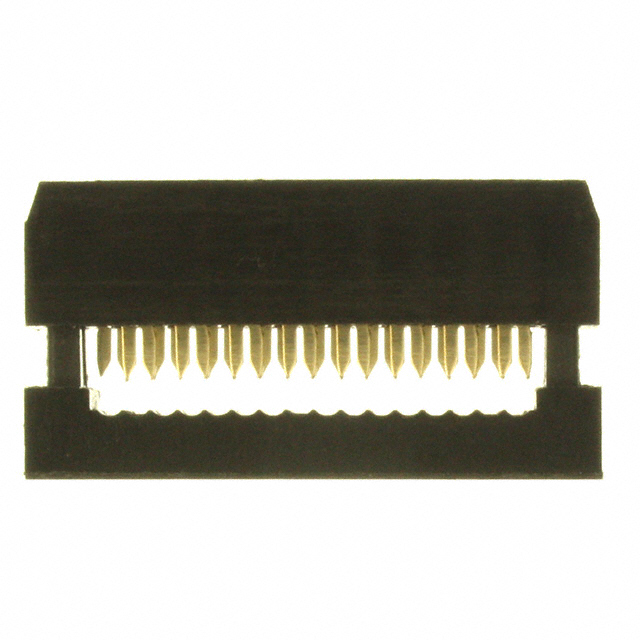

SFH21-PPPN-D08-ID-BK

Active

Sullins Connector Solutions

CONN HEADER 16POS IDC 26-28AWG

Deep-Dive with AI

Search across all available documentation for this part.

SFH21-PPPN-D08-ID-BK

Active

Sullins Connector Solutions

CONN HEADER 16POS IDC 26-28AWG

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFH21-PPPN-D08-ID-BK

Cable Termination	IDC
Color	Black
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Type	Ribbon Cable

SFH21 Series

Part	Features	Pitch [x]	Pitch [x]	Contact Type	Color	Wire Type	Number of Positions	Contact Finish	Connector Type	Row Spacing	Row Spacing	Contact Finish Thickness	Number of Rows	Cable Termination	Mounting Type	Number of Positions
Sullins Connector Solutions SFH21-PPPN-D15-ID-BK-M181	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	30	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPPN-D34-ID-BK-M181	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	68	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPPN-D13-ID-BK-M181	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	26	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D08-ID-BK-M181	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable		Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)	16
Sullins Connector Solutions SFH21-PPVN-D34-ID-BK-M181	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	68	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D07-ID-BK	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	14	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPPN-D08-ID-BK	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable		Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)	16
Sullins Connector Solutions SFH21-PPVN-D25-ID-BK-M181	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	50	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D06-ID-BK-M181	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	12	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)
Sullins Connector Solutions SFH21-PPVN-D06-ID-BK	Feed Through Polarizing Key	0.079 in	2 mm	Female Socket	Black	Ribbon Cable	12	Gold	Header	2 mm	0.079 in	Flash	2	IDC	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.10
		10	$ 0.93
		80	$ 0.83
		440	$ 0.68
		1000	$ 0.61
		5000	$ 0.54

Description

General part information

SFH21 Series

16 Position Rectangular Header Connector IDC Gold 26-28 AWG

Documents

Technical documentation and resources

No documents available
