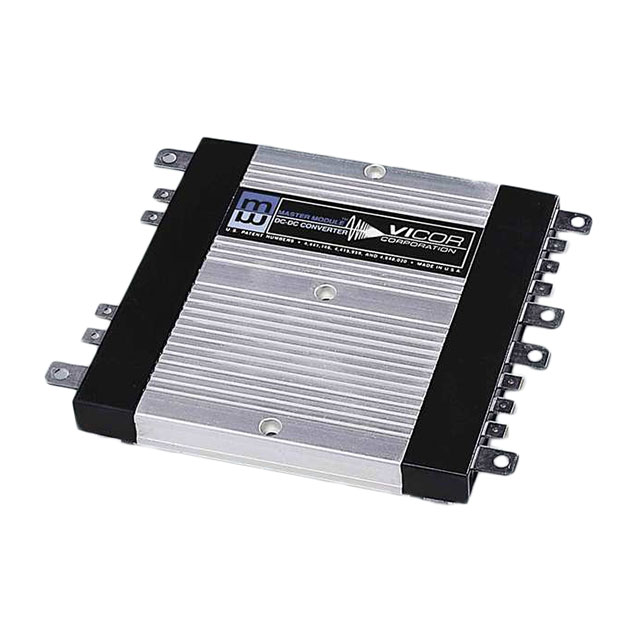

VI-RJ6443-IXXX
ActiveVicor Corporation
DC/DC CNVRTR 300V 2X48V 24V 75W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VI-RJ6443-IXXX
ActiveVicor Corporation
DC/DC CNVRTR 300V 2X48V 24V 75W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VI-RJ6443-IXXX |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Current - Output (Max) | 1.56 A, 3.13 A |
| Efficiency | 90 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 225 W |
| Size / Dimension [x] | 186 mm |
| Size / Dimension [x] | 7.32 in |
| Size / Dimension [y] | 65.5 mm |
| Size / Dimension [y] | 2.58 in |
| Size / Dimension [z] | 15.75 mm |
| Size / Dimension [z] | 0.62 in |
| Type | Isolated |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Input (Min) [Min] | 200 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
| Voltage - Output 2 | 48 V |
| Voltage - Output 3 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1694.23 | |
Description
General part information
VI-RJ6443 Series
Isolated DC DC Converter 3 Output 48V 48V 24V 1.56A, 1.56A, 3.13A 400V Input
