B30B-PHDSS

Active

JST Sales America Inc.

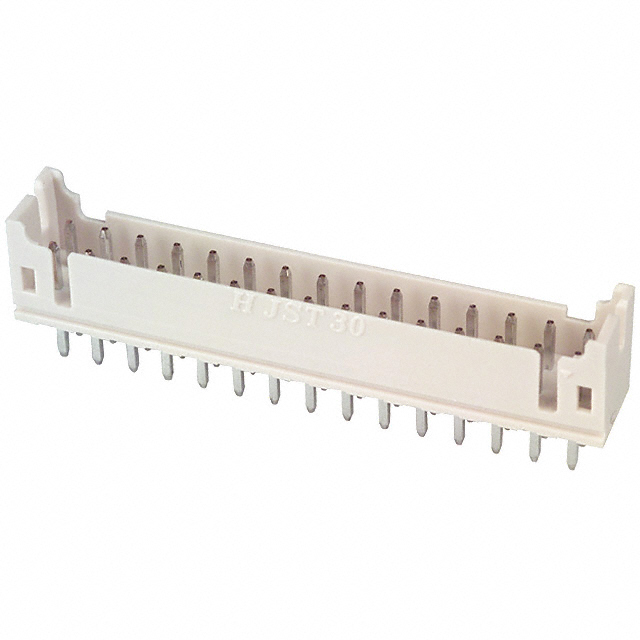

CONN HEADER VERT 30POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 30POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B30B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	6.5 mm
Insulation Height	0.256 in
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mated Stacking Heights	8.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overall Contact Length	0.291 in
Overall Contact Length	7.4 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Connector Type	Insulation Color	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Rows	Mated Stacking Heights	Contact Material	Contact Finish - Post	Termination	Number of Positions Loaded	Mounting Type	Style	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Fastening Type	Contact Shape	Material Flammability Rating	Insulation Material	Contact Type
JST Sales America Inc. B30B-PHDSS	-25 °C	85 °C	0.079 in	2 mm	250 VDC	0.114 in	2.9 mm	Header	Natural	Shrouded - 4 Wall	0.079 in	2 mm	30	0.118 in	3 mm	2	8.8 mm	Copper Alloy	Tin	Solder	All	Through Hole	Board to Cable/Wire	6.5 mm	0.256 in	0.291 in	7.4 mm	3 A	Detent Lock	Square	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Male Pin
