RH-241509D/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

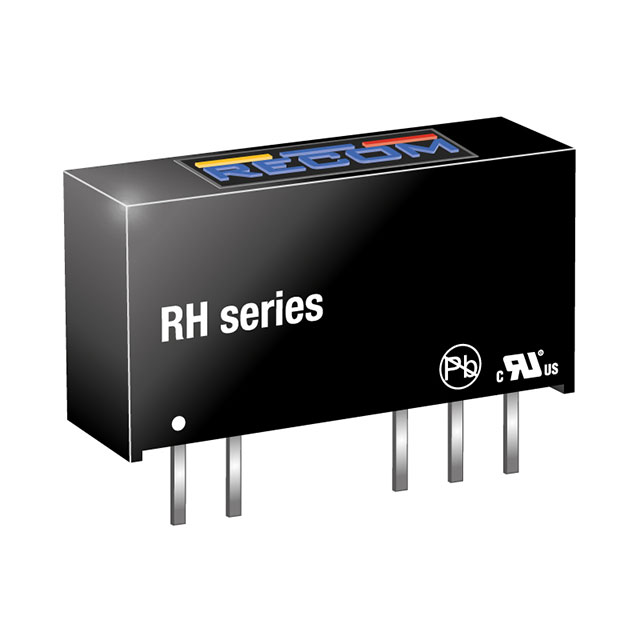

RH-241509D/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 1W 24VIN +15/-9V THT SHORT CIRCUIT PROTEC

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RH-241509D/P

Applications	ITE (Commercial)
Current - Output (Max)	33 mA, 56 mA
Efficiency	84 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Size / Dimension [x]	19.6 mm
Size / Dimension [x]	0.77 in
Size / Dimension [y]	0.24 "
Size / Dimension [y]	6 mm
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	26.4 V
Voltage - Input (Min) [Min]	21.6 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V
Voltage - Output 2	-9 V

RH-051509 Series

Isolated DC/DC Converters - Through Hole 1W DC/DC 4kV UNREG 5Vin +/-9Vout

Part	Number of Outputs	Package / Case	Type	Voltage - Output 2	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Features	Current - Output (Max)	Mounting Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max) [Max]
RECOM Power RH-241509D/P	2	7-SIP Module 5 Leads	Isolated Module	-9 V	15 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.24 "	6 mm	21.6 V	SCP	33 mA 56 mA	Through Hole	3000 V	26.4 V	ITE (Commercial)	90 °C	-40 °C	84 %
RECOM Power RH-1505D	2	7-SIP Module 5 Leads	Isolated Module	-5 V	5 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.24 "	6 mm	13.5 V		100 mA	Through Hole	3000 V	16.5 V	ITE (Commercial) Medical	90 °C	-40 °C	78 %	100 mA
RECOM Power RH-0515D/H	2	7-SIP Module 5 Leads	Isolated Module	-15 V	15 V	10.2 mm	0.4 "	19.7 mm	0.77 in	0.28 in	7.1 mm	4.5 V		33 mA	Through Hole	4000 V	5.5 V	ITE (Commercial) Medical	90 °C	-40 °C	84 %
RECOM Power RH-1512D/H6	2	7-SIP Module 5 Leads	Isolated Module	-12 V	12 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.28 in	7 mm	13.5 V	SCP		Through Hole	6.4 kV	16.5 V	ITE (Commercial)	90 °C	-40 °C	80 %		42 mA	42 mA
RECOM Power RH-2409D/P	2	7-SIP Module 5 Leads	Isolated Module	-9 V	9 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.24 "	6 mm	21.6 V	SCP		Through Hole	3000 V	26.4 V	ITE (Commercial) Medical	90 °C	-40 °C	79 %
RECOM Power RH-1515D/HP	2	7-SIP Module 5 Leads	Isolated Module	-15 V	15 V	10.2 mm	0.4 "	19.7 mm	0.77 in	0.28 in	7.1 mm	13.5 V	SCP	33 mA	Through Hole	4000 V	16.5 V	ITE (Commercial) Medical	90 °C	-40 °C	84 %
RECOM Power RH-1209D	2	7-SIP Module 5 Leads	Isolated Module	-9 V	9 V	10.2 mm	0.4 "	19.6 mm	0.77 in	0.24 "	6 mm	10.8 V			Through Hole	3000 V	13.2 V	ITE (Commercial) Medical	90 °C	-40 °C	79 %
RECOM Power RH-0505D/HP	2	7-SIP Module 5 Leads	Isolated Module	-5 V	5 V	10.2 mm	0.4 "	19.7 mm	0.77 in	0.28 in	7.1 mm	4.5 V	SCP	100 mA	Through Hole	4000 V	5.5 V	ITE (Commercial) Medical	90 °C	-40 °C	78 %	100 mA
RECOM Power RH-1215D/H	2	7-SIP Module 5 Leads	Isolated Module	-15 V	15 V	10.2 mm	0.4 "	19.7 mm	0.77 in	0.28 in	7.1 mm	10.8 V		33 mA	Through Hole	4000 V	13.2 V	ITE (Commercial) Medical	90 °C	-40 °C	84 %
RECOM Power RH-2415D/H	2	7-SIP Module 5 Leads	Isolated Module	-15 V	15 V	10.2 mm	0.4 "	19.7 mm	0.77 in	0.28 in	7.1 mm	21.6 V		33 mA	Through Hole	4000 V	26.4 V	ITE (Commercial) Medical	90 °C	-40 °C	84 %
