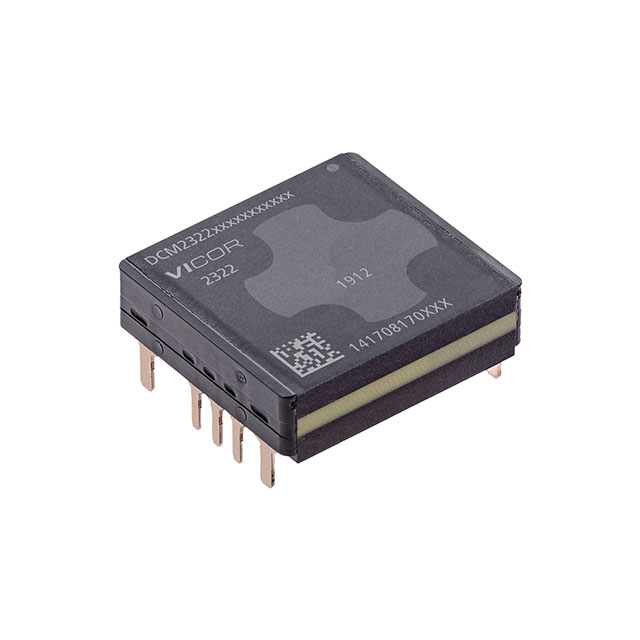

DCM2322TA5N0660M60
ActiveVicor Corporation
DC DC CONVERTER 5V 60W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DCM2322TA5N0660M60
ActiveVicor Corporation
DC DC CONVERTER 5V 60W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DCM2322TA5N0660M60 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 12 A |
| Efficiency | 86.2 % |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 9-DIP Module |
| Power (Watts) | 60 W |
| Size / Dimension [x] | 24.8 mm |
| Size / Dimension [x] | 0.98 " |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [y] | 22.8 mm |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 154 V |
| Voltage - Input (Min) [Min] | 43 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 287.93 | |
| 10 | $ 228.71 | |||
| 25 | $ 208.69 | |||
| 50 | $ 204.38 | |||
Description
General part information
DCM2322 Series
Isolated Module DC DC Converter 1 Output 5V 12A 43V - 154V Input
