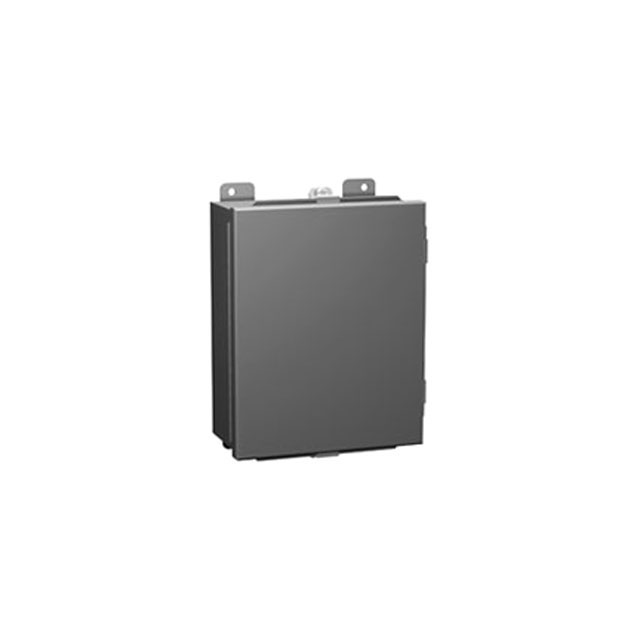

1414N4PHILP

Active

Hammond Manufacturing

BOX STEEL GRAY 10"L X 8"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnclosure Overview Datasheet

1414N4PHILP

Active

Hammond Manufacturing

BOX STEEL GRAY 10"L X 8"W

Deep-Dive with AI

DocumentsEnclosure Overview Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1414N4PHILP

Area (L x W)	80 in²
Area (L x W)	516 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Height [z]	101.6 mm
Height [z]	101.6 mm
Material	Metal, Steel
Ratings	IP66, UL-508, NEMA 12, NEMA 4, NEMA 3R, NEMA 13, JIC EGP-1-1967
Size / Dimension [x]	254 mm
Size / Dimension [x]	10 in
Size / Dimension [y]	8 in
Size / Dimension [y]	203.2 mm
Thickness	14 Gauge
Weight	9 lbs
Weight	4.1 kg

1414 Series

Part	Thickness	Ratings	Features	Color	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Weight	Weight	Container Type	Design	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W)	Thickness	Size / Dimension
Hammond Manufacturing 1414PHG6	14 Gauge	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Interior Panels	Gray	48 in²	310 cm²	152.4 mm	6 in	Metal Steel	3.6 kg	8 lbs	Box	Hinged Door Lid
Hammond Manufacturing 1414PHRO6	14 Gauge	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Interior Panels	Gray	224 in²	1445 cm²	152.4 mm	6 in	Metal Steel	10.4 kg	23 lbs	Box	Hinged Door Lid	355.6 mm	16 in	14 in	406.4 mm
Hammond Manufacturing 1414SCI	14 Gauge	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Interior Panels	Gray	80 in²	516 cm²	101.6 mm	101.6 mm	Metal Steel	4.5 kg	10 lbs	Box	Cover Included	203.2 mm	10 in	8 in	254 mm
Hammond Manufacturing 1414N4E	14 Gauge	IP66 JIC EGP-1-1967 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508	Interior Panels	Gray		232 cm²	101.6 mm	101.6 mm	Metal Steel	2.7 kg	6 lbs	Box	Cover Included	152.4 mm	6 in	6 "	152.4 mm	36 in²
Hammond Manufacturing 1414PHILP	14 Gauge	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508		Gray	80 in²	516 cm²	101.6 mm	101.6 mm	Metal Steel	3.6 kg	8 lbs	Box	Hinged Door Lid	203.2 mm	10 in	8 in	254 mm
Hammond Manufacturing 1414N4PHILP	14 Gauge	IP66 JIC EGP-1-1967 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508		Gray	80 in²	516 cm²	101.6 mm	101.6 mm	Metal Steel	4.1 kg	9 lbs	Box	Hinged Door Lid	203.2 mm	10 in	8 in	254 mm
Hammond Manufacturing 1414N4ALI	0.08 "	IP66 NEMA 12 NEMA 13 NEMA 4 UL-508	Interior Panels	Natural	80 in²	516 cm²	101.6 mm	101.6 mm	Aluminum Metal	2.3 kg	5 lbs	Box	Cover Included	203.2 mm	10 in	8 in	254 mm		2.03 mm
Hammond Manufacturing 1414PHK8LP	14 Gauge	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508		Gray	120 in²	774 cm²	203.2 mm	8 "	Metal Steel	6.8 kg	15 lbs	Box	Hinged Door Lid		12 in	10 in				254 mm 304.8 mm
Hammond Manufacturing 1414N4PHO10	14 Gauge	IP66 JIC EGP-1-1967 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508	Interior Panels	Gray	224 in²	1445 cm²	254 mm	10 in	Metal Steel	12.7 kg	28 lbs	Box	Hinged Door Lid	355.6 mm	16 in	14 in	406.4 mm
Hammond Manufacturing 1414SCM6	14 Gauge	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	Interior Panels	Gray	168 in˛	1084 cm˛	152.4 mm	6 in	Metal Steel	8.6 kg	19 lbs	Box	Cover Included	304.8 mm	14 in	12 "	355.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 125.12

Description

General part information

1414 Series

Box Metal, Steel Gray Hinged Door, Lid 10.000" L x 8.000" W (254.00mm x 203.20mm) X 4.000" (101.60mm)
