OD9220-24HS

Active

Orion Fans

FAN AXIAL 92X20MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD9220-24HS

Active

Orion Fans

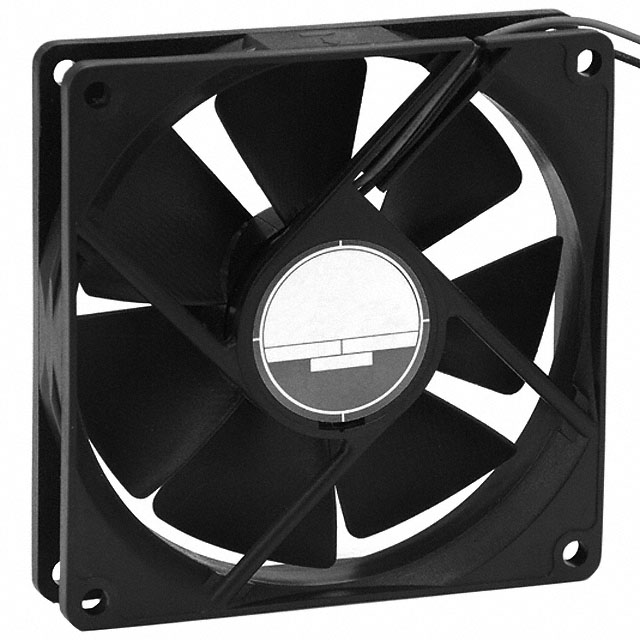

FAN AXIAL 92X20MM 24VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD9220-24HS

Air Flow	32 CFM
Air Flow	0.896 m³/min
Approval Agency	cURus, TUV
Bearing Type	Sleeve
Current Rating (Amps)	140 mA
Fan Type	Tubeaxial
Lifetime @ Temp.	65000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	33 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	2700 RPM
Static Pressure	0.125 in H2O
Static Pressure	31.1 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	12 VDC
Width [y]	20 mm

OD9220 Series

Part	Width [y]	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Termination	Voltage - Rated	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Bearing Type	Static Pressure	Static Pressure	Material - Blade	Noise	Fan Type	Air Flow	Air Flow	Lifetime @ Temp.	Features
Orion Fans OD9220-24HB	20 mm	2700 RPM	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	24 VDC	cURus TUV	12 VDC	28 VDC	140 mA	Ball	0.125 in H2O	31.1 Pa	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	33 dB(A)	Tubeaxial	32 CFM	0.896 m³/min	65000 Hrs
Orion Fans OD9220-24MSS02A	20 mm						Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	24 VDC	cURus TUV				Sealed Sleeve			Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial				Locked Rotor Sensor
Orion Fans OD9220-24HB01A	20 mm	2700 RPM	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	24 VDC	cURus TUV	12 VDC	28 VDC	140 mA	Ball	0.125 in H2O	31.1 Pa	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	33 dB(A)	Tubeaxial	32 CFM	0.896 m³/min	65000 Hrs	Speed Sensor (Tach)
Orion Fans OD9220-12MS	20 mm	2400 RPM	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	12 VDC	cURus TUV	8 VDC	16 V		Sleeve	0.11 in H2O	27.4 Pa	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	31 dB(A)	Tubeaxial	28 CFM	0.784 m³/min	65000 Hrs
Orion Fans OD9220-12HSS	20 mm						Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	12 VDC	cURus TUV				Sealed Sleeve			Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial
Orion Fans OD9220-12HS01A	20 mm	2700 RPM	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	12 VDC	cURus TUV	8 VDC	16 V	0.25 A	Sleeve	0.13 in H2O	32.4 Pa	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	33 dB(A)	Tubeaxial	32 CFM	0.896 m³/min	65000 Hrs	Speed Sensor (Tach)
Orion Fans OD9220-24MS02A	20 mm	2400 RPM	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	24 VDC	cURus TUV	12 VDC	28 VDC	120 mA	Sleeve	0.11 in H2O	27.4 Pa	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	31 dB(A)	Tubeaxial	28 CFM	0.784 m³/min	65000 Hrs	Locked Rotor Sensor
Orion Fans OD9220-12HSS02A	20 mm						Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	12 VDC	cURus TUV				Sealed Sleeve			Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial				Locked Rotor Sensor
Orion Fans OD9220-24HS	20 mm	2700 RPM	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads	24 VDC	cURus TUV	12 VDC	28 VDC	140 mA	Sleeve	0.125 in H2O	31.1 Pa	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	33 dB(A)	Tubeaxial	32 CFM	0.896 m³/min	65000 Hrs
Orion Fans OD9220-24HSS02A	20 mm						Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	24 VDC	cURus TUV				Sealed Sleeve			Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial				Locked Rotor Sensor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 7.04

Description

General part information

OD9220 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Sleeve 32.0 CFM (0.896m³/min) 2 Wire Leads

Documents

Technical documentation and resources

No documents available
