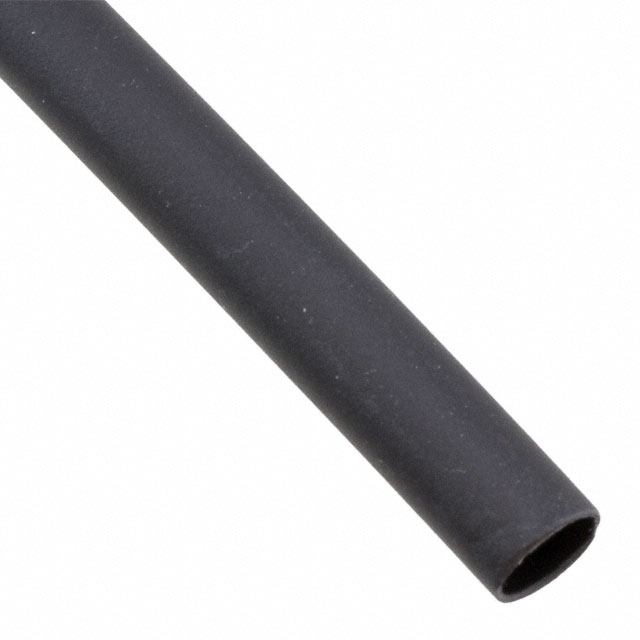

Q5-4X-1/4-01-QB48IN-25

Active

Qualtek

HEATSHRINK 1/4"-48" BLACK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 1/4"-48" BLACK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-4X-1/4-01-QB48IN-25

Color	Black
Features	Adhesive Lined, Fluid Resistant
Inner Diameter - Recovered [diameter]	1.55 mm
Inner Diameter - Recovered [diameter]	0.061 in
Inner Diameter - Supplied [diameter]	0.236 in
Inner Diameter - Supplied [diameter]	5.99 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.99 mm
Recovered Wall Thickness	0.039 in
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Recovered Wall Thickness	Recovered Wall Thickness	Type	Material	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length	Color	Shelf Life	Length	Length [x]	Length [x]
Qualtek Q5-4X-1/4-01-QB6IN-20	-50 °F -10 °C	40 °C	Adhesive Lined Fluid Resistant	1.55 mm	0.061 in	-55 °C	125 °C	80 °C	0.99 mm	0.039 in	Tubing Flexible	Polyolefin (PO)	4 to 1	0.236 in	5.99 mm	152.4 mm	6 "	0.5 '	Black	60 Months
Qualtek Q5-4X-1/4-01-SS100M	-50 °F -10 °C	40 °C	Adhesive Lined Fluid Resistant	1.55 mm	0.061 in	-55 °C	125 °C	80 °C	0.99 mm	0.039 in	Tubing Flexible	Polyolefin (PO)	4 to 1	0.236 in	5.99 mm	100 m			Black	60 Months	328.1 ft
Qualtek Q5-4X-1/4-01-QB48IN-25	-50 °F -10 °C	40 °C	Adhesive Lined Fluid Resistant	1.55 mm	0.061 in	-55 °C	125 °C	80 °C	0.99 mm	0.039 in	Tubing Flexible	Polyolefin (PO)	4 to 1	0.236 in	5.99 mm				Black	60 Months		1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.236" (5.99mm) 4 to 1 Black 4.00' (1.22m)
