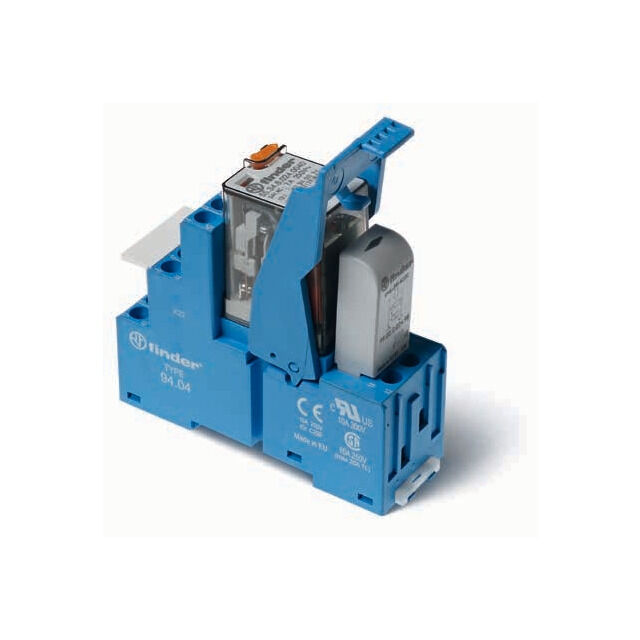

58.34.8.230.0049SMA

Active

Finder Relays, Inc.

ATEX/C1D2 INTERFACE MODULE, 4PDT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

58.34.8.230.0049SMA

Active

Finder Relays, Inc.

ATEX/C1D2 INTERFACE MODULE, 4PDT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	58.34.8.230.0049SMA

Approval Agency	cURus, VDE, UKCA, EAC, CSA, CE, RINA
Coil Current	6 mA
Coil Resistance	17 kOhms
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	7 A
Features	Mechanical Indicator, Lighted Indicator
Load - Max Switching	1750 VA
Mounting Type	DIN Rail
Must Operate Voltage	184 VAC
Must Release Voltage	46 VAC
Operate Time	11 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	3 ms
Switching Voltage	250 VAC
Termination Style	Screw Terminal

58.34.8 Series

Part	Coil Current	Features	Termination Style	Coil Voltage	Load - Max Switching	Must Operate Voltage	Switching Voltage	Mounting Type	Coil Type	Operate Time	Relay Type	Must Release Voltage	Contact Form	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Approval Agency	Release Time	Contact Material
Finder Relays, Inc. 58.34.8.120.0060SPA	12 mA	Lighted Indicator Varistor	Screw Terminal	120 VAC	1750 VA	96 VAC	250 VAC	DIN Rail	Non Latching	11 ms	General Purpose	24 VAC	4PDT (4 Form C)	4700 Ohms	-40 °C	70 °C	7 A	CE CSA cURus EAC RINA UKCA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 58.34.8.024.0060SPA	53 mA	Lighted Indicator Varistor	Screw Terminal	24 VAC	1750 VA	19.2 VAC	250 VAC	DIN Rail	Non Latching	11 ms	General Purpose	4.8 VAC	4PDT (4 Form C)	190 Ohms	-40 °C	70 °C	7 A	CE CSA cURus EAC RINA UKCA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 58.34.8.230.0049SMA	6 mA	Lighted Indicator Mechanical Indicator	Screw Terminal	230 VAC	1750 VA	184 VAC	250 VAC	DIN Rail	Non Latching	11 ms	General Purpose	46 VAC	4PDT (4 Form C)	17 kOhms	-40 °C	70 °C	7 A	CE CSA cURus EAC RINA UKCA VDE	3 ms	Silver Nickel (AgNi)
Finder Relays, Inc. 58.34.8.120.5060SPA	12 mA	Lighted Indicator Varistor	Screw Terminal	120 VAC	1750 VA	96 VAC	250 VAC	DIN Rail	Non Latching	11 ms	General Purpose	24 VAC	4PDT (4 Form C)	4700 Ohms	-40 °C	70 °C	7 A	CE CSA cURus EAC RINA UKCA VDE	3 ms	Gold (Au) Silver Nickel (AgNi)
Finder Relays, Inc. 58.34.8.230.0060SPA	6 mA	Lighted Indicator Varistor	Screw Terminal	230 VAC	1750 VA	184 VAC	250 VAC	DIN Rail	Non Latching	11 ms	General Purpose	46 VAC	4PDT (4 Form C)	17 kOhms	-40 °C	70 °C	7 A	CE CSA cURus EAC RINA UKCA VDE	3 ms	Silver Nickel (AgNi)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.00

Description

General part information

58.34.8 Series

General Purpose Relay 4PDT (4 Form C) 230VAC Coil DIN Rail
