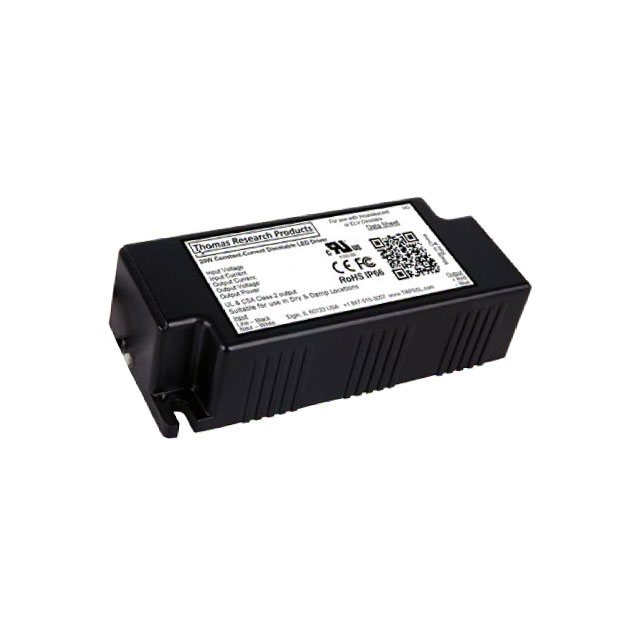

LED20W120-040-C0500-LT

Active

Thomas Research Products

LED DRIVER CC AC/DC 24-40V 500MA

Search across all available documentation for this part.

Active

Thomas Research Products

LED DRIVER CC AC/DC 24-40V 500MA

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Type	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Input (Max) [Max] [custom]	Features	Mounting Type	Approval Agency	Dimming	Number of Outputs	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Input (Min) [Min]	Power (Watts)	Topology	Ratings	Termination Style	Size / Dimension [z]	Size / Dimension [y]	Weight	Weight
Thomas Research Products LED20W120-040-C0500-LT	500 mA	Constant Current	24 V	40 V	132 VAC	OCP OVP SCP	Chassis Mount	CE cURus	ELV TRIAC	1	41 mm	1.6 "	95 mm	25 mm	3.74 "	0.98 in	85 %	108 VAC	20 W	AC DC Converter	IP66	Wire Leads
Thomas Research Products LED20W120-057-C0350-LT	350 mA	Constant Current	34 V	57 V	132 VAC	OCP OVP SCP	Chassis Mount	CE cURus	ELV TRIAC	1		1.61 "	95 mm		3.74 "	0.98 in	85 %	108 VAC	20 W	AC DC Converter	IP66	Wire Leads	25 mm	41 mm	0.364 lb	165.11 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 41.26

General part information

500mA 24 ~ 40V Constant Current LED Driver AC DC Converter Topology 1 Output
