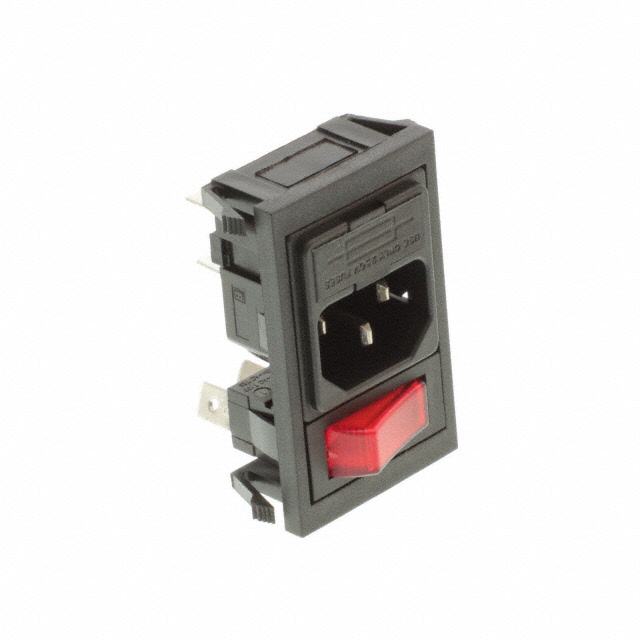

BZV01/Z0000/02

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BZV01/Z0000/02

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BZV01/Z0000/02

Accomodates a Fuse	True
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm
Panel Cutout Dimensions [y]	56.6 mm
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

BZV01/Z Series

Part	Switch Features	Connector Type	Connector Style	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Material Flammability Rating	Voltage Rating - Appliance Inlet	Filter Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Termination	Fuse Holder, Drawer	Approval Agency	Current Rating - Appliance Inlet
BULGIN LIMITED BZV01/Z0000/13	Switch On-Off	Receptacle Male Blades - Module	IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	250 VAC	Unfiltered - Commercial	Panel Mount Snap-In	70.1 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Fuse Holder	CSA ENEC UL VDE	10 A
BULGIN LIMITED BZV01/Z0000/11	Switch On-Off	Receptacle Male Blades - Module	IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	250 VAC	Unfiltered - Commercial	Panel Mount Snap-In	70.1 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Fuse Holder	CSA ENEC UL VDE	10 A
BULGIN LIMITED BZV01/Z0000/02	Switch On-Off	Receptacle Male Blades - Module	IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	250 VAC	Unfiltered - Commercial	Panel Mount Snap-In	56.6 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Fuse Holder	CSA ENEC UL VDE	10 A
BULGIN LIMITED BZV01/Z0000/46	Switch On-Off	Receptacle Male Blades - Module	IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	250 VAC	Unfiltered - Commercial	Panel Mount Snap-In	56.6 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Fuse Holder	CSA ENEC UL VDE	10 A
BULGIN LIMITED BZV01/Z0000/12	Switch On-Off	Receptacle Male Blades - Module	IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	250 VAC	Unfiltered - Commercial	Panel Mount Snap-In	70.1 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Fuse Holder	CSA ENEC UL VDE	10 A
BULGIN LIMITED BZV01/Z0000/08	Switch On-Off	Receptacle Male Blades - Module	IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	250 VAC	Unfiltered - Commercial	Panel Mount Snap-In	56.6 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Fuse Holder	CSA ENEC UL VDE	10 A
BULGIN LIMITED BZV01/Z0000/10	Switch On-Off	Receptacle Male Blades - Module	IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	UL94 V-0	250 VAC	Unfiltered - Commercial	Panel Mount Snap-In	70.1 mm	34.4 mm	0.25 in	6.3 mm	Quick Connect	Fuse Holder	CSA ENEC UL VDE	10 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.96
		10	$ 17.48
		25	$ 16.72
		50	$ 16.18
		100	$ 15.64
		250	$ 14.78
		500	$ 14.35

Description

General part information

BZV01/Z Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
