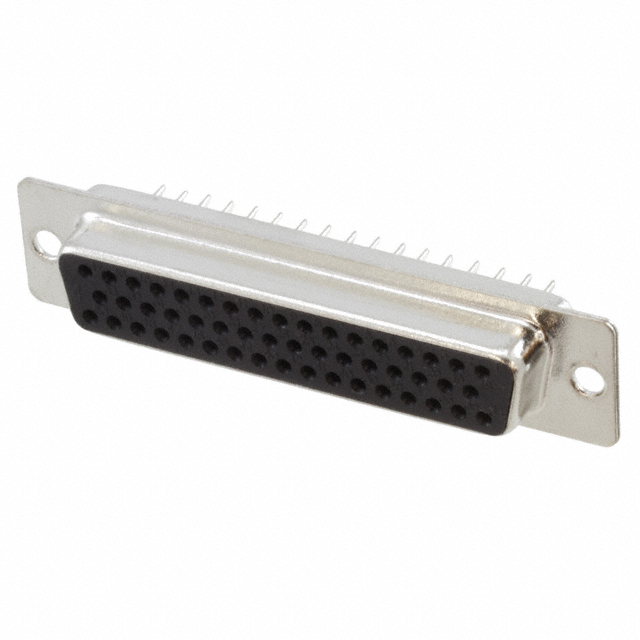

A-DF 50 PP/Z
ActiveAssmann WSW Components
CONN D-SUB RCPT 50POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-DF 50 PP/Z
ActiveAssmann WSW Components
CONN D-SUB RCPT 50POS VERT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-DF 50 PP/Z |
|---|---|
| Color | Gray |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Shell Size, Connector Layout | 5 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.86 | |
| 10 | $ 2.60 | |||
| 25 | $ 2.46 | |||
| 40 | $ 2.41 | |||
| 80 | $ 2.29 | |||
| 240 | $ 2.00 | |||
| 440 | $ 1.95 | |||
| 960 | $ 1.66 | |||
| 2400 | $ 1.55 | |||
Description
General part information
A-DF 50 Series
50 Position D-Sub Receptacle, Female Sockets Connector
