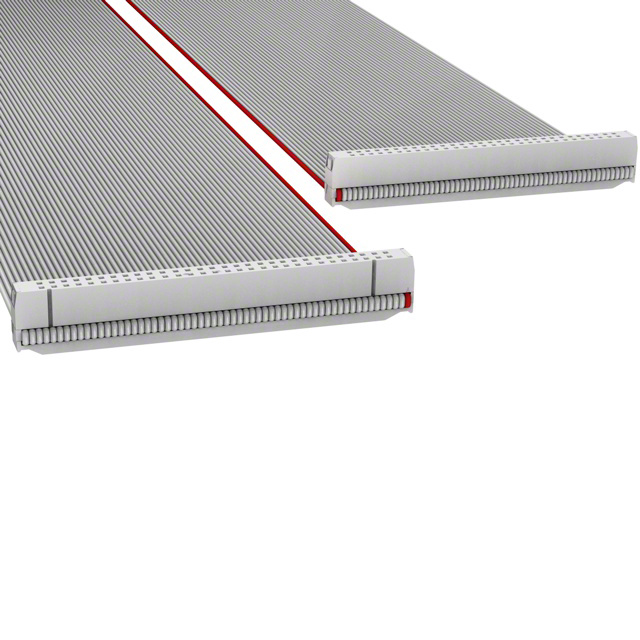

H3DDH-6018G

Active

Assmann WSW Components

IDC CBL - HHKR60H/AE60G/HHKR60H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR60H/AE60G/HHKR60H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDH-6018G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key, Strain Relief
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Contact Finish	Shielding	Number of Rows	Number of Positions	Pitch - Cable	Pitch - Cable	Color	Length	Length	Length
Assmann WSW Components H3DDH-6036M	Polarizing Key Strain Relief	Socket to Socket	15 µin	0.38 µm	IDC	0.1 in	2.54 mm	3 ft	914.4 mm	Gold	Unshielded	2	60	0.05 "	1.27 mm	Multiple Ribbon
Assmann WSW Components H3DDH-6006M	Polarizing Key Strain Relief	Socket to Socket	15 µin	0.38 µm	IDC	0.1 in	2.54 mm			Gold	Unshielded	2	60	0.05 "	1.27 mm	Multiple Ribbon	152.4 mm	6 "	0.5 '
Assmann WSW Components H3DDH-6018G	Polarizing Key Strain Relief	Socket to Socket	15 µin	0.38 µm	IDC	0.1 in	2.54 mm	1.5 ft	457.2 mm	Gold	Unshielded	2	60	0.05 "	1.27 mm
Assmann WSW Components H3DDH-6006G	Polarizing Key Strain Relief	Socket to Socket	15 µin	0.38 µm	IDC	0.1 in	2.54 mm			Gold	Unshielded	2	60	0.05 "	1.27 mm		152.4 mm	6 "	0.5 '
Assmann WSW Components H3DDH-6018M	Polarizing Key Strain Relief	Socket to Socket	15 µin	0.38 µm	IDC	0.1 in	2.54 mm	1.5 ft	457.2 mm	Gold	Unshielded	2	60	0.05 "	1.27 mm	Multiple Ribbon
Assmann WSW Components H3DDH-6036G	Polarizing Key Strain Relief	Socket to Socket	15 µin	0.38 µm	IDC	0.1 in	2.54 mm	3 ft	914.4 mm	Gold	Unshielded	2	60	0.05 "	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Cable Assembly Rectangular Socket to Socket 1.50' (457.20mm)

Technical documentation and resources
