CMT-ST-108-0625

Active

Parker Chomerics

RF EMI SHIELD TAPE 98.75MX0.063"

Search across all available documentation for this part.

Active

Parker Chomerics

RF EMI SHIELD TAPE 98.75MX0.063"

Technical Specifications

Parameters and characteristics for this part

Part	Shelf Life Start	Material	Length [x]	Length [x]	Type	Adhesive	Shape	Operating Temperature [Max]	Operating Temperature [Min]	Thickness - Overall [z]	Thickness - Overall [z]	Width	Width	Shelf Life	Thickness - Overall	Thickness - Overall	Width [y]	Width [y]
Parker Chomerics CMT-ST-108-0625	Date of Shipment	Tin-Plated Copper Foil	323.983 '	98.75 m	Shielding Tape	Acrylic Conductive	Circular	82 °C	-40 °C	0.005 in	0.12 mm	1.59 mm	0.063 "	24 Months
Parker Chomerics CMT-ST-108-0430	Date of Shipment	Tin-Plated Copper Foil	323.983 '	98.75 m	Shielding Tape	Acrylic Conductive	Circular	82 °C	-40 °C					24 Months	0.003 "	0.08 mm	10.9 mm	0.429 in
Parker Chomerics CMT-ST-108-0800	Date of Shipment	Tin-Plated Copper Foil	323.983 '	98.75 m	Absorbing Tape	Acrylic Conductive	Circular	82 °C	-40 °C					24 Months	0.003 "	0.08 mm	20.32 mm	0.8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

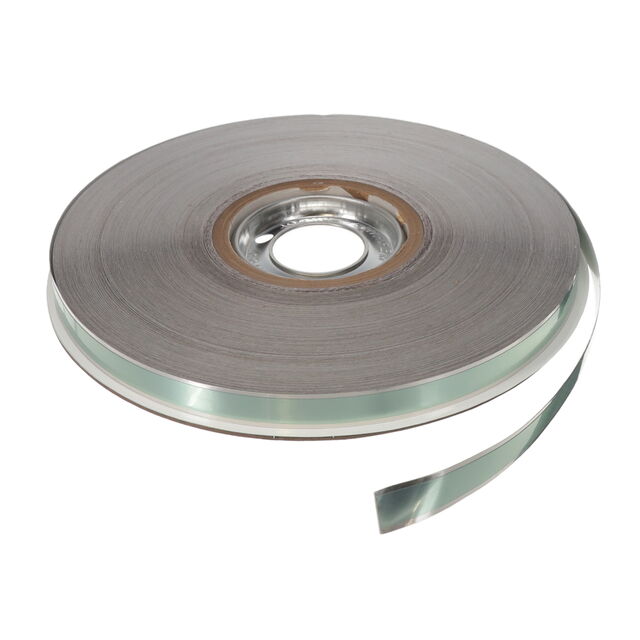

RF EMI Shielding Tape CHO-MASK® II Tin-Plated Copper Foil Acrylic, Conductive 0.063" (1.59mm) X 323.983' (98.75m) X 0.005" (0.12mm)
