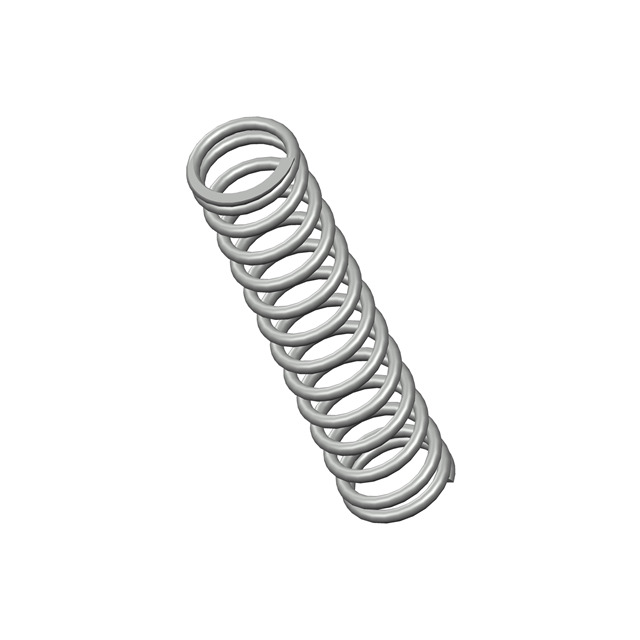

A11-56CS

Active

Century Spring Corp

COMP O= .281,L= 1.25,W= .033

Search across all available documentation for this part.

Active

Century Spring Corp

COMP O= .281,L= 1.25,W= .033

Technical Specifications

Parameters and characteristics for this part

Part	End Style	Rate	Finish	Free Length	Free Length	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Wire Diameter	Wire Diameter	Load	Wire Diameter [diameter]	Wire Diameter [diameter]	Free Length [x]	Free Length [x]	Wire Diameter
Century Spring Corp A11-22CS	Closed Ground	32 lbs/in	Gold Iridite	0.31 in	7.87 mm	4.37 mm	0.172 in	Music Wire	0.126 in	3.2 mm	0.023 in	0.58 mm
Century Spring Corp A11-2CS		29 lbs/in	None			8.38 mm	0.33 in	Spring Steel			0.052 in	1.32 mm	15 lbs
Century Spring Corp A11-13CS	Closed Ground		None			7.52 mm	0.296 in	Stainless Steel	0.2 in	5.08 mm				1.22 mm	0.048 in	1.38 "	35.05 mm
Century Spring Corp A11-12CS	Closed Ground	2.5 lbs/in	None	1.06 in	26.92 mm	11.89 mm	0.468 in	Stainless Steel	0.408 in	10.36 mm	0.03 in	0.76 mm
Century Spring Corp A11-21CS	Closed Ground	82 lbs/in	None		0.22 " 5.59 mm	7.52 mm	0.296 in	Stainless Steel	0.23 in	5.84 mm	0.033 in	0.84 mm
Century Spring Corp A11-56CS	Closed Ground	9.3 lbs/in	None	1.25 in	31.75 mm	7.14 mm	0.281 in	Spring Steel	0.215 in	5.46 mm	0.033 in	0.84 mm
Century Spring Corp A11-65CS	Closed	0.94 lbs/in	None	0.81 in	20.57 mm	11.89 mm	0.468 in	Stainless Steel	0.42 in	10.67 mm		0.61 mm						0.024 "
Century Spring Corp A11-11CS	Closed Ground	11 lbs/in	None	0.38 in	9.65 mm	3.18 mm	0.125 in	Stainless Steel	0.091 in	2.31 mm				0.43 mm	0.017 "
Century Spring Corp A11-67CS	Closed		None	0.63 in	16 mm	7.92 mm	0.312 in	Music Wire	0.266 in	6.76 mm	0.023 in	0.58 mm
Century Spring Corp A11-10CS	Closed Ground	67 lbs/in	None	0.47 in	11.94 mm	7.52 mm	0.296 in	Stainless Steel	0.21 in	5.33 mm	0.043 "	1.09 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

COMP O= .281,L= 1.25,W= .033
