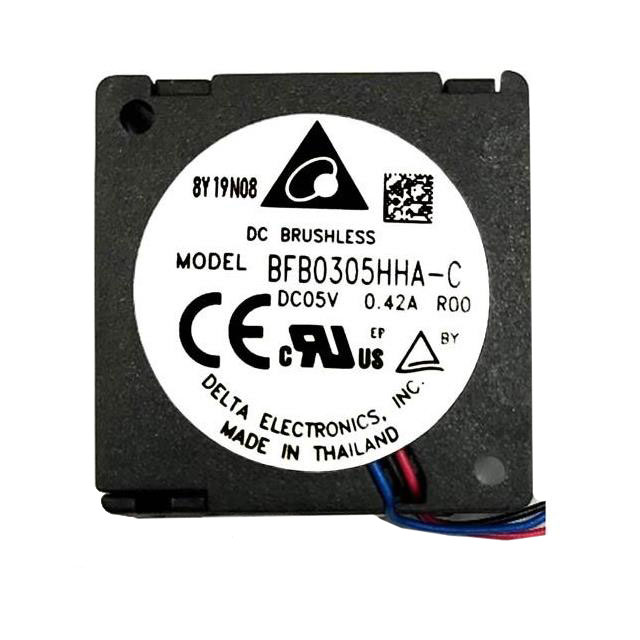

BFB0305HA-C

Active

Delta Electronics

FAN BLOWER 30X10MM 5VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 30X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage Range [Min]	Voltage Range [Max]	Termination	Material - Blade	Width [y]	Fan Type	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Voltage - Rated	Bearing Type	Static Pressure	Static Pressure	Weight	Weight	Current Rating (Amps)	RPM	Power (Watts)	Noise	Lifetime @ Temp.	Air Flow	Air Flow	Features
Delta Electronics BFB0305LA-C	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	2 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	35.9 Pa	0.144 in H2O	10.43 g	0.023 lb	0.09 A	5500 RPM	450 mW	24 dB	30000 Hrs	0.031 m³/min	1.1 CFM
Delta Electronics BFB0305HA-C	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	2 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	71 Pa	0.285 in H2O	10.43 g	0.023 lb		7500 RPM	0.65 W	29 dB(A)	30000 Hrs	0.042 m³/min	1.5 CFM
Delta Electronics BFB0305LA-CF00	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	3 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	35.9 Pa	0.144 in H2O	10.43 g	0.023 lb	0.09 A	5500 RPM	450 mW	24 dB	30000 Hrs	0.031 m³/min	1.1 CFM	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics BFB0305MA-CR00	Plastic	70 °C	70 °C	-10 °C	-10 °C	4.5 V	5.5 V	3 Wire Leads	Plastic	10 mm	Blower	CE cURus TUV	30 mm	30 mm	5 V	Ball	51.3 Pa	0.206 in H2O	10.43 g	0.023 lb	120 mA	6500 RPM	600 mW	26 dB	30000 Hrs	0.034 m³/min	1.2 CFM	Locked Rotor Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 5VDC Square - 30mm L x 30mm H Ball 1.5 CFM (0.042m³/min) 2 Wire Leads

Technical documentation and resources
