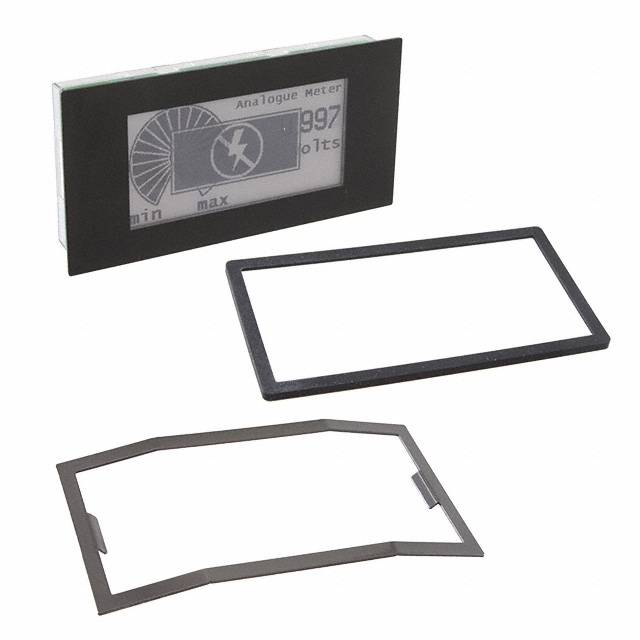

SGD 21-B

Active

Lascar Electronics

2.1" E-PAPER DOT MATRIX DISPLAY

Search across all available documentation for this part.

Active

Lascar Electronics

2.1" E-PAPER DOT MATRIX DISPLAY

Technical Specifications

Parameters and characteristics for this part

Specification	SGD 21-B

Display Type	TFT - Electronic Paper Display (EPD)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	1.25 VDC
Measuring Range [Min]	0 V
Measuring Type	Voltage
Number of Characters Per Row	5
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Type	Solid State
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	70 mm
Panel Cutout Dimensions [y]	34 mm
Termination Style	PC Pin
Type	Voltmeter
Voltage - Supply [Max]	9 V
Voltage - Supply [Min]	4 V

Part	Termination Style	Measuring Type	Output Type	Display Type	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Range [Max]	Measuring Range [Min]	Number of Characters Per Row	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Type
Lascar Electronics SGD 21-B	PC Pin	Voltage	Solid State	TFT - Electronic Paper Display (EPD)	40 °C	0 °C	1.25 VDC	0 V	5	70 mm	34 mm	Rectangular	9 V	4 V	IP54 - Dust Protected Water Resistant	Voltmeter

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltmeter TFT - Electronic Paper Display (EPD) Display Panel Mount
