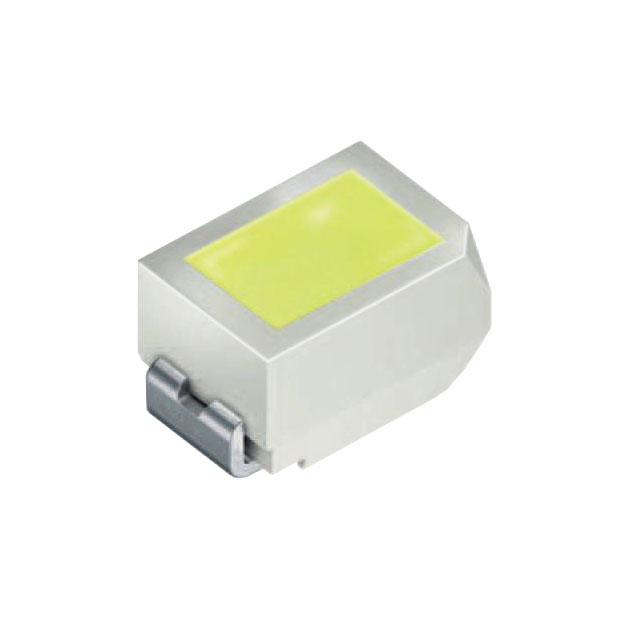

LA M67F-V1AB-24-1-20-R18-Z
LTBams-OSRAM USA INC.
LED MINI TOPLED AMBER 618NM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LA M67F-V1AB-24-1-20-R18-Z
LTBams-OSRAM USA INC.
LED MINI TOPLED AMBER 618NM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LA M67F-V1AB-24-1-20-R18-Z |
|---|---|
| Color | Amber |
| Current - Max [Max] | 30 mA |
| Current - Test | 20 mA |
| Height - Seated (Max) [Max] | 1.4 mm |
| Height - Seated (Max) [Max] | 0.055 in |
| Lumens/Watt @ Current - Test | 93 lm/W |
| Luminous Flux @ Current/Temperature | 4 lm |
| Luminous Flux @ Current/Temperature [Max] | 5 lm |
| Luminous Flux @ Current/Temperature [Min] | 2 lm |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 " |
| Size / Dimension [y] | 1.4 mm |
| Size / Dimension [y] | 0.055 " |
| Supplier Device Package | SMD |
| Thermal Resistance of Package | 580 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.15 V |
| Wavelength | 618 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.41 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.15 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.10 | ||
| 6000 | $ 0.10 | |||
| 15000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
LAM67F Series
LED Lighting Color Mini TOPLED Amber 618nm (612nm ~ 624nm) 2-SMD, J-Lead
