1589H4C1

Active

Hammond Manufacturing

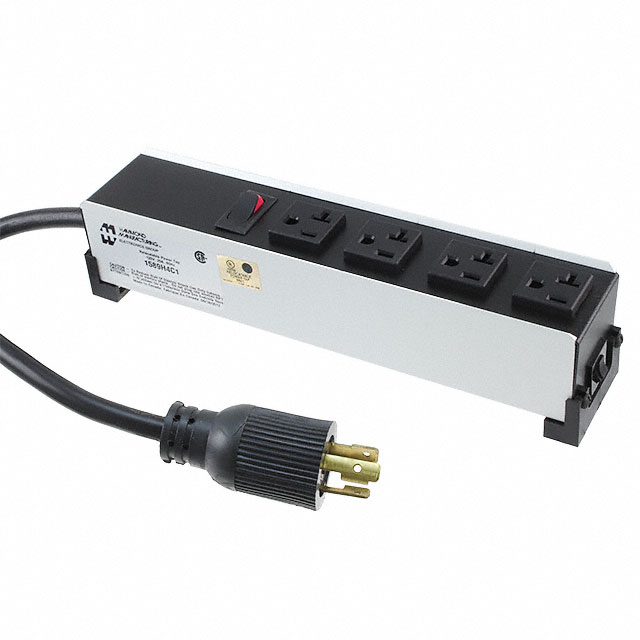

POWER STRIP 11" 20A 4OUT 6'CR

Deep-Dive with AI

Search across all available documentation for this part.

1589H4C1

Active

Hammond Manufacturing

POWER STRIP 11" 20A 4OUT 6'CR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1589H4C1

AC Outlets	4
Approval Agency	CSA, UL
Connector - AC Input	NEMA L5-20P
Connector - AC Output	NEMA 5-20R
Current - Max [Max]	20 A
Housing Material	Steel, Aluminum
Mounting Type	Wall, Bench
Overload Protection	Circuit Breaker(s)
Region Utilized	North America
Type	Power Strip, Outlet Strip
Voltage - Input	120 V
Weight	3 lb
Weight	1.4 kg

1589H4 Series

Part	Housing Material	Overload Protection	Current - Max [Max]	Connector - AC Input	Voltage - Input	Region Utilized	Approval Agency	Type	AC Outlets	Cord Length	Cord Length	Connector - AC Output	Mounting Type	Weight	Weight
Hammond Manufacturing 1589H48G1	Aluminum	Circuit Breaker(s)	20 A	NEMA 5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	8 outlets	15 ft	4.57 m	NEMA 5-20R	Bench Rack Wall
Hammond Manufacturing 1589H42G1	Aluminum	Circuit Breaker(s)	20 A	NEMA 5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	7	15 ft	4.57 m	NEMA 5-20R	Bench Rack Wall
Hammond Manufacturing 1589H48D1	Aluminum	Circuit Breaker(s)	20 A	NEMA L5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	8 outlets	15 ft	4.57 m	NEMA 5-20R	Bench Rack Wall
Hammond Manufacturing 1589H48C116	Aluminum	Circuit Breaker(s)	20 A	NEMA L5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	16			NEMA 5-20R	Bench Rack Wall
Hammond Manufacturing 1589H42C1	Aluminum	Circuit Breaker(s)	20 A	NEMA L5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	7			NEMA 5-20R	Bench Rack Wall
Hammond Manufacturing 1589H4C1	Aluminum Steel	Circuit Breaker(s)	20 A	NEMA L5-20P	120 V	North America	CSA UL	Outlet Strip Power Strip	4			NEMA 5-20R	Bench Wall	3 lb	1.4 kg
Hammond Manufacturing 1589H4F1	Aluminum Steel	Circuit Breaker(s)	20 A	NEMA 5-20P	120 V	North America	CSA UL	Outlet Strip Power Strip	4			NEMA 5-20R	Bench Wall	3 lb	1.4 kg
Hammond Manufacturing 1589H48F1	Aluminum	Circuit Breaker(s)	20 A	NEMA 5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	8 outlets			NEMA 5-20R	Bench Rack Wall
Hammond Manufacturing 1589H42F1	Aluminum	Circuit Breaker(s)	20 A	NEMA 5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	7			NEMA 5-20R	Bench Rack Wall
Hammond Manufacturing 1589H48C1	Aluminum	Circuit Breaker(s)	20 A	NEMA L5-20P	120 V	North America	CSA UL	PDU (Power Distribution Unit)	8 outlets			NEMA 5-20R	Bench Rack Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.73

Description

General part information

1589H4 Series

POWER STRIP 11" 20A 4OUT 6'CR

Documents

Technical documentation and resources

No documents available
