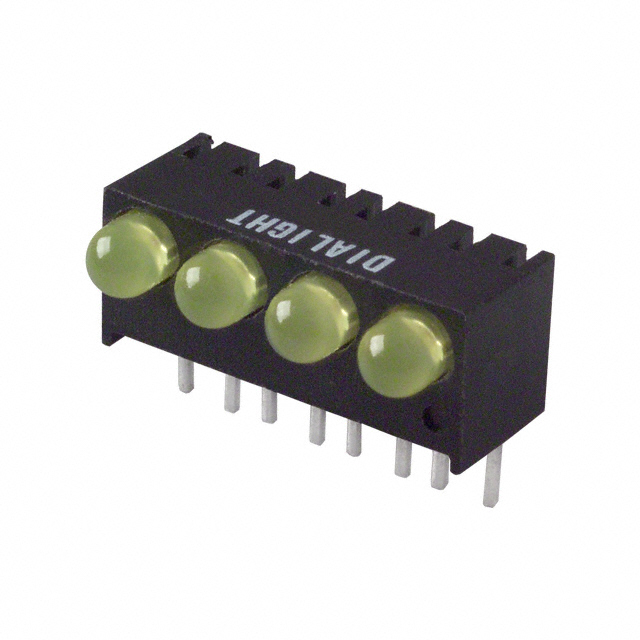

5510307004F

Active

DIALIGHT

LED CBI 3MM QUAD YLW RA

Search across all available documentation for this part.

Active

DIALIGHT

LED CBI 3MM QUAD YLW RA

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Lens Size	Lens Size	Lens Style	Configuration	Viewing Angle	Millicandela Rating	Voltage Rating	Lens Type	Current	Wavelength - Peak	Color
DIALIGHT 5510307803F	Through Hole Right Angle	3 mm	T-1	Round with Domed Top
DIALIGHT 5510307809F	Through Hole Right Angle	3 mm	T-1	Round with Domed Top
DIALIGHT 5510307004F	Through Hole Right Angle				4 Wide	45 °	6.3 mcd	2.1 V	Diffused Tinted	10 mA	585 nm	Yellow (x 4)
DIALIGHT 5510307003F	Through Hole Right Angle	3 mm	T-1	Round with Domed Top	3 Wide	45 °	6.3 mcd	2.1 V	Diffused Tinted	10 mA	585 nm	Yellow (x 3)
DIALIGHT 5510307801F	Through Hole Right Angle	3 mm	T-1	Round with Domed Top
DIALIGHT 5510307812F	Through Hole Right Angle	3 mm	T-1	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator 4 Wide Yellow (x 4) Diffused, Tinted 2.1V 10mA Through Hole, Right Angle
