681M21WA4PL151

Active

MH Connectors

CONN D-SUB PLUG 21P PNL MNT SLDR

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB PLUG 21P PNL MNT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	681M21WA4PL151

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	17
Number of Positions [custom]	4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	21WA4, 4 (DC, C)
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Rows	Contact Finish	Contact Type	Current Rating (Amps)	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Color	Material Flammability Rating	Features	Number of Positions [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Material	Shell Size, Connector Layout	Flange Feature	Shell Material, Finish	Termination	Dielectric Material	Connector Style
MH Connectors 681M21WA4PL151	2	Gold	Signal and Power	5 A 40 A	Panel Mount Through Hole	250 VDC	-55 °C	125 °C	Male Pins Plug	Black	UL94 V-0	Board Lock Grounding Indents	17	4	Flash	Copper Alloy	21WA4 4 (DC C)	4-40 Board Side	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	Combo D-Sub
MH Connectors 681M21WA4SL141	2	Gold	Signal and Power	5 A 40 A	Panel Mount Through Hole	250 VDC	-55 °C	125 °C	Receptacle Female Sockets	Black	UL94 V-0		17	4	Flash	Copper Alloy	21WA4 4 (DC C)	4-40 Board Side	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	Combo D-Sub
MH Connectors 681M21WA4PL011	2	Gold	Signal and Power	5 A 40 A	Panel Mount Through Hole		-55 °C	125 °C	Male Pins Plug	Black	UL94 V-0	Grounding Indents	17	4	Flash	Copper Alloy	21WA4 4 (DC C)	4-40 Board Side	Nickel Plated Steel	Solder	Polybutylene Terephthalate (PBT)	Combo D-Sub

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

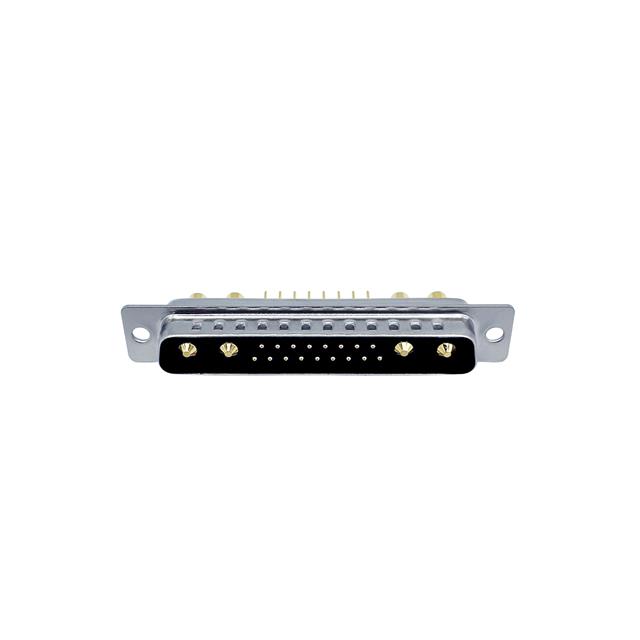

21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
