PTN2.00RD50

Active

Techflex

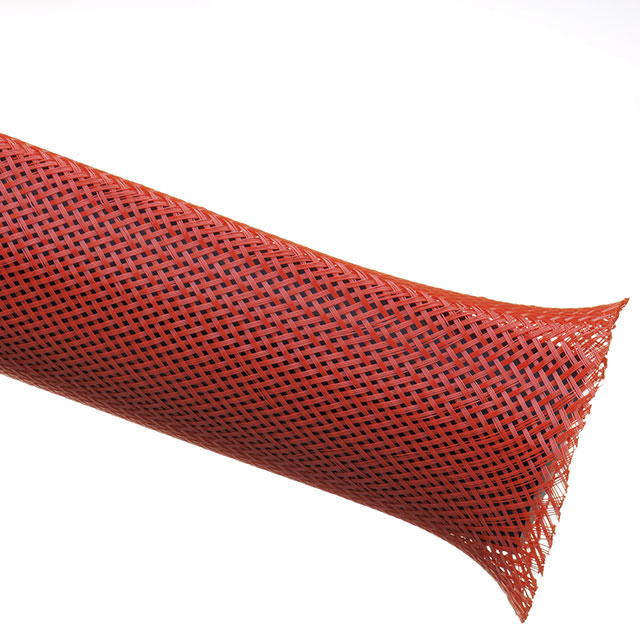

EXPANDABLE SLEEVE 2" X 50' RED

Search across all available documentation for this part.

Active

Techflex

EXPANDABLE SLEEVE 2" X 50' RED

Technical Specifications

Parameters and characteristics for this part

Specification	PTN2.00RD50

Abrasion Protection	Abrasion and Cut Resistant
Color	Red
Diameter - Inside, Expanded [diameter]	88.9 mm
Diameter - Inside, Expanded [diameter]	3.5 in
Diameter - Inside, Non-Expanded [diameter]	50.8 mm
Diameter - Inside, Non-Expanded [diameter]	2 in
Environment Protection	UV Resistant
Features	Clean Cut, Chemical Resistant, Solvent Resistant
Heat Protection	Heat Resistant
Length	15.24 m
Length [x]	50 ft
Liquid Protection	Gasoline Resistant
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness [custom]	0.025 in
Wall Thickness [custom]	0.64 mm

Part	Wall Thickness [custom]	Wall Thickness [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Environment Protection	Length	Length [x]	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material Flammability Rating	Liquid Protection	Type Attributes	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Color	Abrasion Protection	Type	Heat Protection
Techflex PTN2.00RD50	0.025 in	0.64 mm	125 °C	-70 °C	UV Resistant	15.24 m	50 ft	Chemical Resistant Clean Cut Solvent Resistant	50.8 mm	2 in	UL94 V-0	Gasoline Resistant	Expandable	Polyethylene Terephthalate (PET) Halogen Free	88.9 mm	3.5 in	Red	Abrasion and Cut Resistant	Sleeve	Heat Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 77.44

General part information

Sleeve X 50.00' (15.24m) Red

Technical documentation and resources
