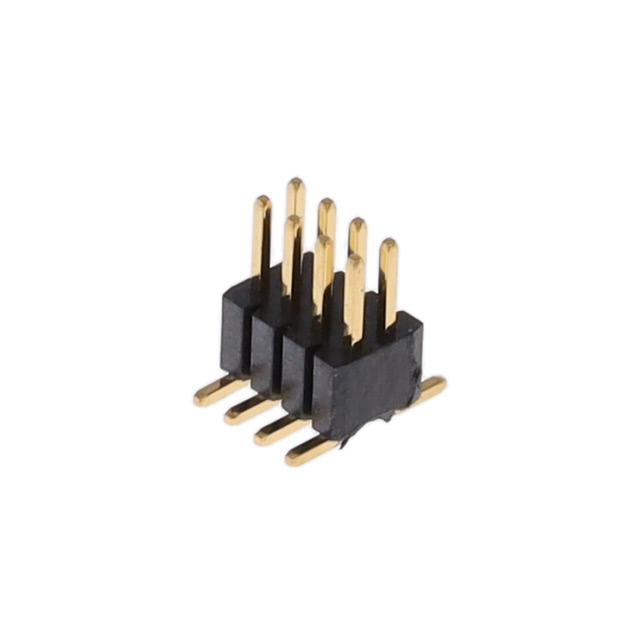

G802M008352YEU

Active

Amphenol ICC (Commercial Products)

PIN HEADER 1.27MM PITCH STR SMT,

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

PIN HEADER 1.27MM PITCH STR SMT,

Technical Specifications

Parameters and characteristics for this part

Specification	G802M008352YEU

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Number of Positions	Insulation Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Termination	Contact Length - Mating	Contact Length - Mating	Insulation Height [z]	Insulation Height [z]	Shrouding	Contact Shape	Features	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Contact Material	Contact Type	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Rows	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (Commercial Products) G802M008352YEU	8	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Solder	3.05 mm	0.12 in	0.098 in	2.5 mm	Unshrouded	Square	Pick and Place	Gold	Black	Gold	Copper Alloy	Male Pin	All	Header	10 çin	0.25 çm	0.05 in	1.27 mm	Surface Mount	2	Push-Pull	10 çin	0.25 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 8 position 0.050" (1.27mm)
