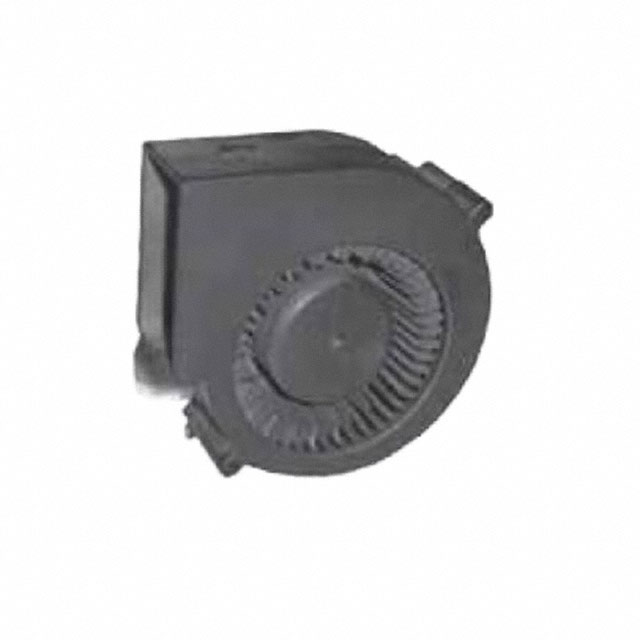

ODB9733-24HB

Active

Orion Fans

DC BLOWER - 24V 97 X 94 X 33MM

Search across all available documentation for this part.

Active

Orion Fans

DC BLOWER - 24V 97 X 94 X 33MM

Technical Specifications

Parameters and characteristics for this part

Specification	ODB9733-24HB

Air Flow	0.924 mł/min
Air Flow	33 CFM
Bearing Type	Ball
Current Rating (Amps)	0.35 A
Fan Type	Blower
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	56 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	8.4 W
RPM	4000 RPM
Size / Dimension [x]	96 mm
Size / Dimension [y]	96 mm
Static Pressure	1.1 in H2O
Static Pressure	274 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	21.6 VDC
Width [y]	33 mm

Part	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Voltage - Rated	Current Rating (Amps)	Power (Watts)	RPM	Size / Dimension [y]	Size / Dimension [x]	Termination	Bearing Type	Width [y]	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Noise
Orion Fans ODB9733-24HB	Blower	70 °C	70 °C	-10 °C	-10 °C	1.1 in H2O	274 Pa	24 VDC	0.35 A	8.4 W	4000 RPM	96 mm	96 mm	2 Wire Leads	Ball	33 mm	0.924 mł/min	33 CFM	21.6 VDC	26.4 VDC	Polybutylene Terephthalate (PBT)	56 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 22.50
Newark	Each	1	$ 28.20
		1000	$ 25.85

General part information

Fan Blower 24VDC Square/Rounded - 96mm L x 96mm H Ball 33.0 CFM (0.924m³/min) 2 Wire Leads

Technical documentation and resources

No documents available
