DS1270Y-70IND

Obsolete

Analog Devices Inc./Maxim Integrated

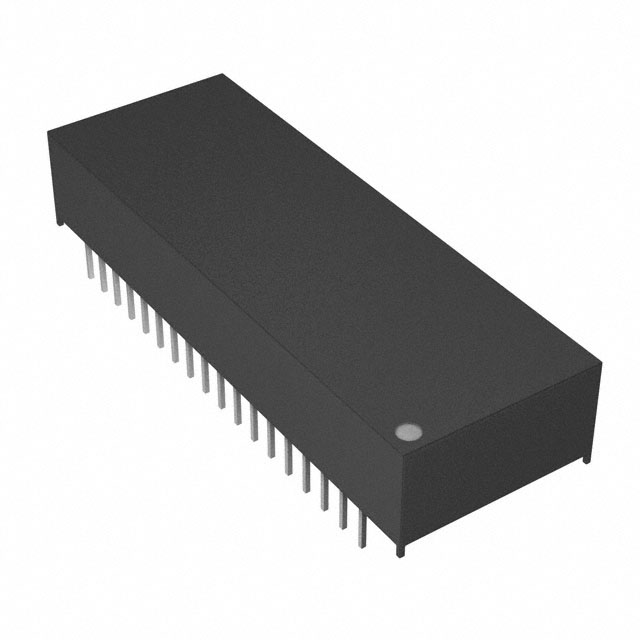

IC NVSRAM 16MBIT PARALLEL 36EDIP

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC NVSRAM 16MBIT PARALLEL 36EDIP

Technical Specifications

Parameters and characteristics for this part

Part	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Memory Organization	Memory Size	Supplier Device Package	Memory Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Package / Case	Access Time	Technology	Memory Type	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]
Analog Devices Inc./Maxim Integrated DS1270Y-70	NVSRAM	70 °C	0 °C	Through Hole	2 M	16 Mb	36-EDIP	Parallel	4.5 V	5.5 V	36-DIP Module	0.61 " 15.49 mm	70 ns	NVSRAM (Non-Volatile SRAM)	Non-Volatile
Analog Devices Inc./Maxim Integrated DS1270Y-70IND	NVSRAM	85 °C	-40 °C	Through Hole	2 M	16 Mb	36-EDIP	Parallel	4.5 V	5.5 V	36-DIP Module	0.61 " 15.49 mm	70 ns	NVSRAM (Non-Volatile SRAM)	Non-Volatile
Analog Devices Inc./Maxim Integrated DS1270Y-100	NVSRAM	70 °C	0 °C	Through Hole	2 M	16 Mb	36-EDIP	Parallel	4.5 V	5.5 V	36-DIP Module	0.61 " 15.49 mm	100 ns	NVSRAM (Non-Volatile SRAM)	Non-Volatile	100 ns	100 ns
Analog Devices Inc./Maxim Integrated DS1270Y-100#	NVSRAM	70 °C	0 °C	Through Hole	2 M	16 Mb	36-EDIP	Parallel	4.5 V	5.5 V	36-DIP Module	0.61 " 15.49 mm	100 ns	NVSRAM (Non-Volatile SRAM)	Non-Volatile	100 ns	100 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NVSRAM (Non-Volatile SRAM) Memory IC 16Mbit Parallel 70 ns 36-EDIP
