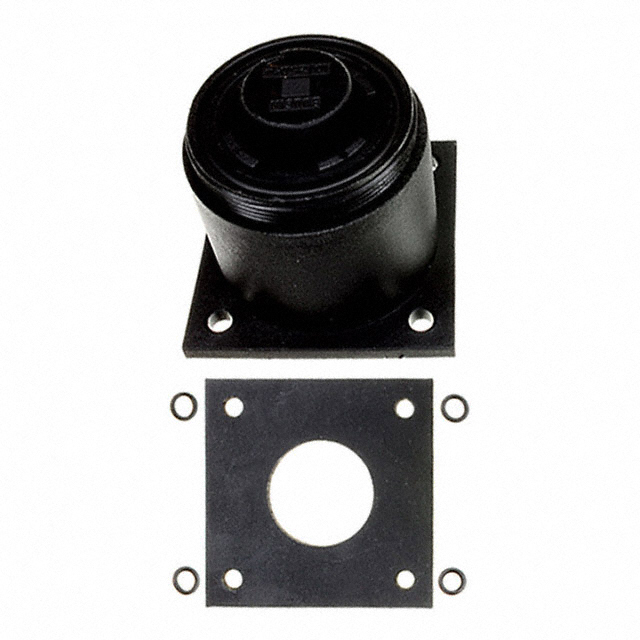

PX0757/S - PX0757/S

PX0757/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, RECEPTACLE, 2, SOCKET, SCREW, PANEL MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
PX0757/S - PX0757/S

PX0757/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, RECEPTACLE, 2, SOCKET, SCREW, PANEL MOUNT ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPX0757/S
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingNickel
Contact MaterialBrass
Current Rating (Amps)12 A
Ingress ProtectionIP68, IP69K
Insert MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 HB
Mounting FeatureFlange
Number of Positions2
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
ShieldingUnshielded
TerminationScrew
Voltage Rating277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 9.92
10$ 8.80
40$ 8.12
80$ 7.94
NewarkEach 1$ 25.76
10$ 22.88
100$ 21.60
250$ 20.67
500$ 19.49
1000$ 18.39
2500$ 17.88
5000$ 16.95

Description

General part information

PX0757 Series

2 (Power) Position Circular Connector Receptacle, Female Sockets Screw
