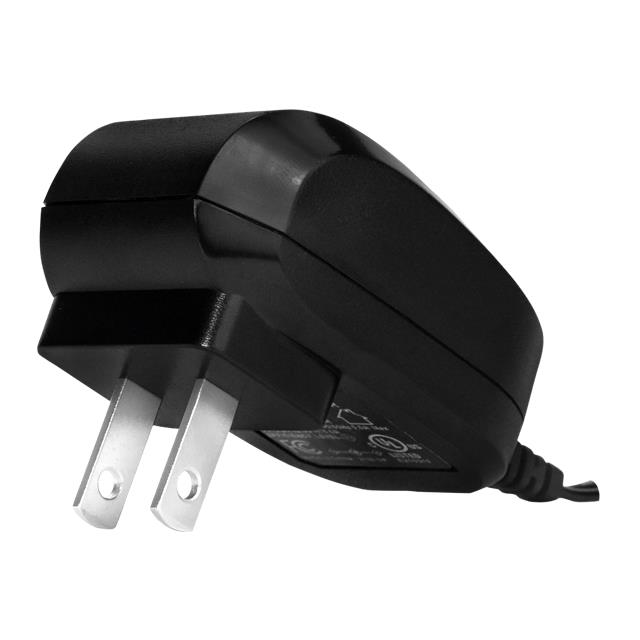

SWH15-12-NB-ST
ActiveCUI Inc.
WALL MOUNT AC ADAPTERS AC-DC, 12 VDC, 1 A, SW, WALL-PLUG, NA, STRIPPED AND TINNED, LEVEL VI, BLACK
Deep-Dive with AI
Search across all available documentation for this part.
SWH15-12-NB-ST
ActiveCUI Inc.
WALL MOUNT AC ADAPTERS AC-DC, 12 VDC, 1 A, SW, WALL-PLUG, NA, STRIPPED AND TINNED, LEVEL VI, BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SWH15-12-NB-ST |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, FCC |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Stripped, Tinned Wire Leads |
| Power (Watts) | 12 W |
| Region Utilized | North America |
| Size / Dimension [x] | 62 mm |
| Size / Dimension [x] | 2.44 in |
| Size / Dimension [y] | 1.56 in |
| Size / Dimension [y] | 39.7 mm |
| Size / Dimension [z] | 1.31 " |
| Size / Dimension [z] | 33.2 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SWH15-E Series
Wall Mount AC Adapters ac-dc, 5 Vdc, 2 A, SW, wall-plug, NA, P5 center pos, level VI, white
