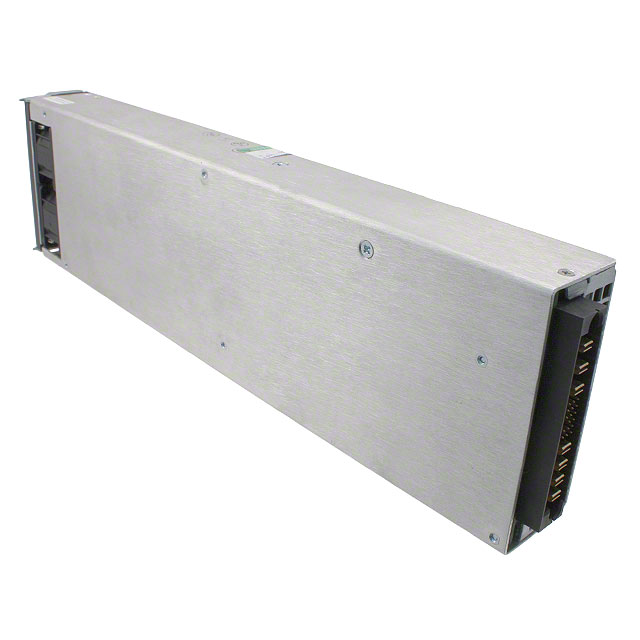

CAR2548FPBC-Z01A

Active

OmniOn Power™

AC/DC CONVERTER 48V 2500W

Search across all available documentation for this part.

Active

OmniOn Power™

AC/DC CONVERTER 48V 2500W

Technical Specifications

Parameters and characteristics for this part

Specification	CAR2548FPBC-Z01A

Applications	ITE (Commercial)
Current - Output 1	52 A
Efficiency	92 %
Features	Load Sharing, PMBus™, Universal Input, Standby Output, Remote Sense, Adjustable Output, PFC, Hot Swappable, I2C Interface
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2500 W
Size / Dimension [x]	14.25 in
Size / Dimension [x]	362 mm
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	40.9 mm
Type	Front End
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Voltage - Output 1	Type	Current - Output 1	Minimum Load Required	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Applications	Number of Outputs	Mounting Type	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency
OmniOn Power™ CAR2548FPBC-Z01A	48 V	Front End	52 A		2500 W	-10 °C	70 °C	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	ITE (Commercial)	1	Rack Mount	3000 V	1.61 "	4 "	14.25 in	362 mm	40.9 mm	101.6 mm	92 %
OmniOn Power™ CAR2548FPB-Z01A	48 V	Front End	52 A		2500 W	-10 °C	70 °C	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input	ITE (Commercial)	1	Rack Mount	3000 V	1.61 "	4 "	14.25 in	362 mm	40.9 mm	101.6 mm	92 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 762.91

General part information

Front End AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
