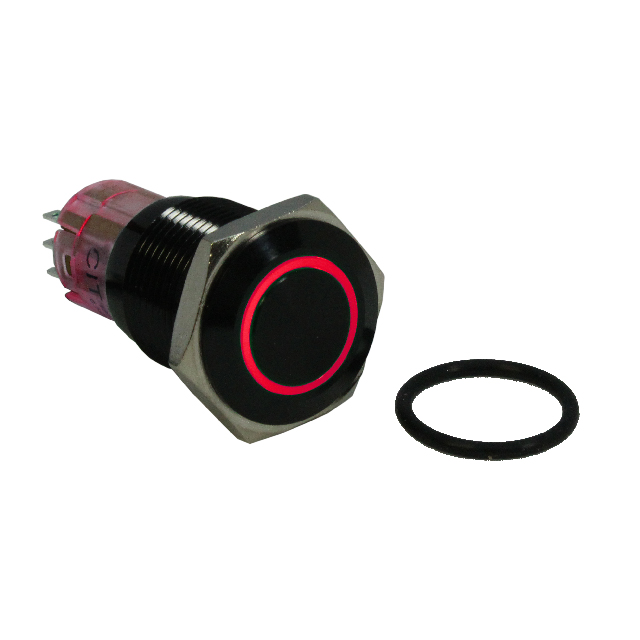

CH1LBBRNS

Active

CIT Relay and Switch

SWITCH PB SPDT 1A 125V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPDT 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	CH1LBBRNS

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Black
Electrical Life	30000 Cycles
Illumination Type, Color	Red, LED
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Color - Actuator/Cap	Voltage Rating - DC	Electrical Life	Actuator Marking	Illumination Type, Color	Circuit	Panel Cutout Dimensions [diameter]	Type	Mounting Type	Voltage Rating - AC	Actuator Type	Switch Function	Termination Style
CIT Relay and Switch CH1LBBRNS	70 °C	-25 °C	IP67 - Dust Tight Waterproof	Black	24 V	30000 Cycles	No Marking	LED Red	SPDT	16 mm	Anti-Vandal Illuminated	Panel Mount Front	125 V	Button Flush Round	On-On	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
