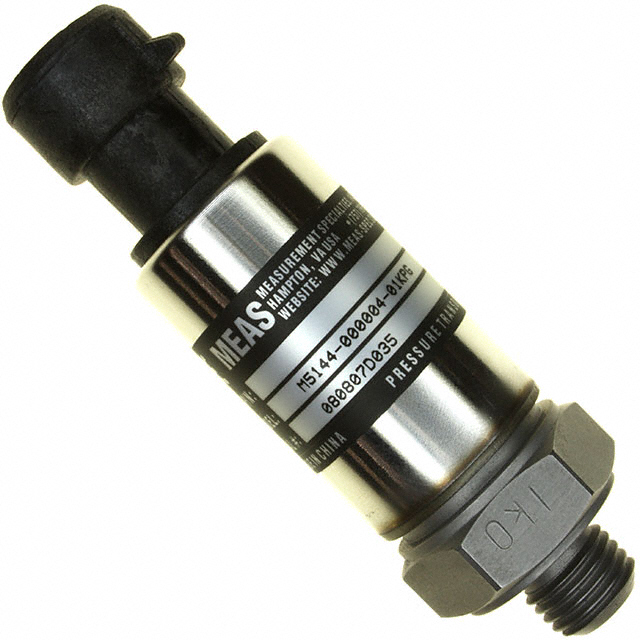

M5144-000004-01KPG

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 1-5VDC 1000PSI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M5144-000004-01KPG

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 1-5VDC 1000PSI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M5144-000004-01KPG

Accuracy	1 %
Applications	Industrial Automation
Features	Temperature Compensated
Maximum Pressure [Max]	2000 PSI
Maximum Pressure [Max]	13789.51 kPa
Operating Pressure	1000 PSI
Operating Pressure	6894.76 kPa
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	5 V
Output [Min]	1 V
Output Type	Analog Voltage
Package / Case	Cylinder
Port Size	Male
Port Size	0.4375 "
Port Size	11.11 mm
Port Style	Threaded
Pressure Type	Vented Gauge
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	8 V

M5144 Series

Part	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Operating Pressure	Operating Pressure	Pressure Type	Applications	Maximum Pressure	Maximum Pressure	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Accuracy	Port Size	Port Size	Port Size	Output Type	Operating Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties M5144-000004-025PG	Threaded	30 VDC	8 V	Temperature Compensated	172.37 kPa	25 PSI	Vented Gauge	Industrial Automation	344.74 kPa	50 PSI	1 V	5 V	125 °C	-40 °C	Cylinder	1 %	Male	0.4375 "	11.11 mm	Analog Voltage
TE Connectivity Measurement Specialties M5144-000004-05KPG	Threaded	30 VDC	8 V	Temperature Compensated		34473.79 kPa	Vented Gauge	Industrial Automation	68947.57 kPa	10000 PSI	1 V	5 V	125 °C	-40 °C	Cylinder	1 %	Male	0.4375 "	11.11 mm	Analog Voltage	5000 PSI
TE Connectivity Measurement Specialties M5144-000004-100PG	Threaded	30 VDC	8 V	Temperature Compensated		689.48 kPa	Vented Gauge	Industrial Automation			1 V	5 V	125 °C	-40 °C	Cylinder	1 %	Male	0.4375 "	11.11 mm	Analog Voltage	100 PSI	200 PSI	1378.95 kPa
TE Connectivity Measurement Specialties M5144-000004-01KPG	Threaded	30 VDC	8 V	Temperature Compensated		6894.76 kPa	Vented Gauge	Industrial Automation			1 V	5 V	125 °C	-40 °C	Cylinder	1 %	Male	0.4375 "	11.11 mm	Analog Voltage	1000 PSI	2000 PSI	13789.51 kPa
TE Connectivity Measurement Specialties M5144-000004-250PG	Threaded	30 VDC	8 V	Temperature Compensated		1723.69 kPa	Vented Gauge	Industrial Automation			1 V	5 V	125 °C	-40 °C	Cylinder	1 %	Male	0.4375 "	11.11 mm	Analog Voltage	250 PSI	500 PSI	3447.38 kPa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M5144 Series

TRANSDUCER 1-5VDC 1000PSI
