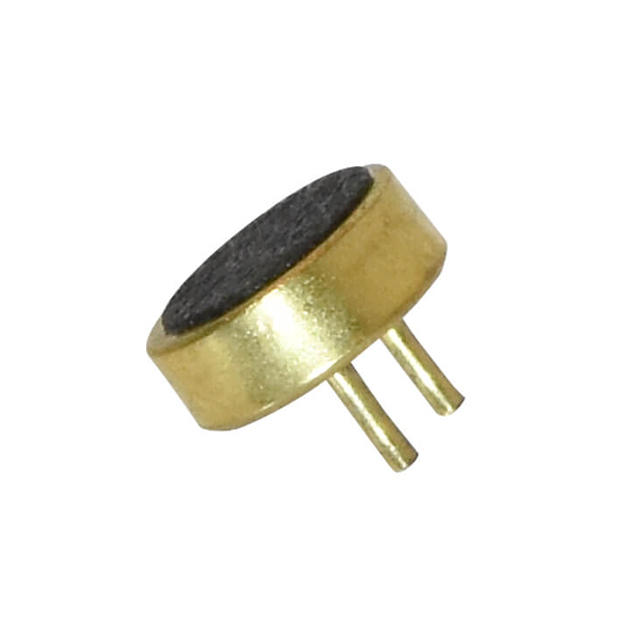

CMEJ-0415-42-P
ActiveCUI Devices
MIC COND ANLG OMNI -42DB 0.157"D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMEJ-0415-42-P
ActiveCUI Devices
MIC COND ANLG OMNI -42DB 0.157"D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMEJ-0415-42-P |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] | 0.067 " |
| Height (Max) [Max] | 1.7 mm |
| Output Type | Analog |
| Port Location | Top |
| S/N Ratio | 60 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 4 mm |
| Size / Dimension [diameter] | 0.157 in |
| Termination | PC Pins |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.40 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.32 | |||
| 40 | $ 0.30 | |||
| 100 | $ 0.29 | |||
| 300 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.24 | |||
| 4900 | $ 0.20 | |||
Description
General part information
CMEJ-0415 Series
100 Hz ~ 10 kHz Analog Microphone Electret Condenser Omnidirectional (-42dB ±3dB @ 94dB SPL) PC Pins
