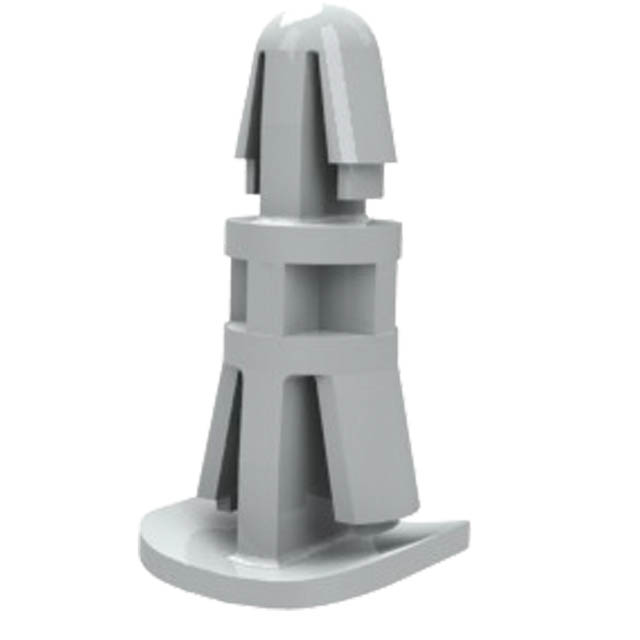

RLCBSA-5-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 5MM
Deep-Dive with AI
Search across all available documentation for this part.
RLCBSA-5-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLCBSA-5-01 |
|---|---|
| Between Board Height | 0.197 in |
| Between Board Height | 5 mm |
| Features | Locking, Reverse Mounting |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 0.217 in |
| Mounting Hole Diameter [diameter] | 5.5 mm |
| Mounting Panel Thickness [Max] | 0.039 in |
| Mounting Panel Thickness [Max] | 1 mm |
| Mounting Panel Thickness [Min] | 0.5 mm |
| Mounting Panel Thickness [Min] | 0.02 in |
| Mounting Type | Snap Lock |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| 3000 | $ 0.19 | |||
Description
General part information
RLCBSA Series
Board Support Snap Lock / Snap Lock Nylon 0.197" (5.00mm)
Documents
Technical documentation and resources
No documents available
