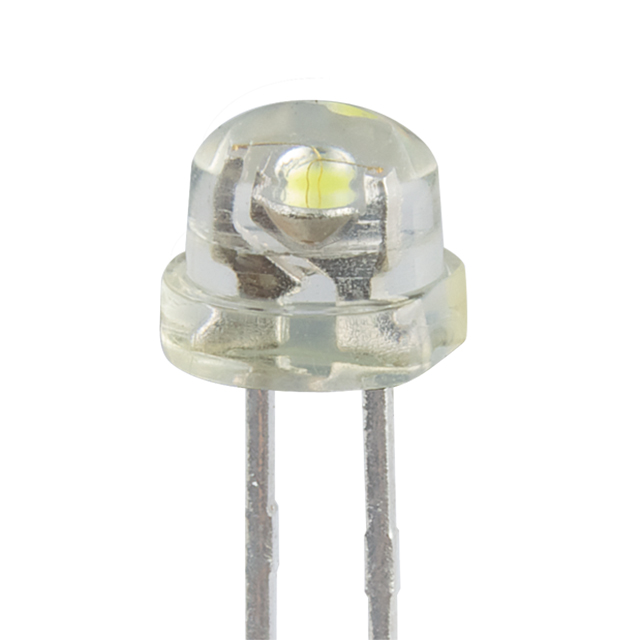

WP9294QBC/D

Active

Kingbright

LED BLUE CLEAR 5MM ROUND T/H

Search across all available documentation for this part.

Active

Kingbright

LED BLUE CLEAR 5MM ROUND T/H

Technical Specifications

Parameters and characteristics for this part

Part	Color	Package / Case	Configuration	Wavelength - Peak	Wavelength - Dominant	Lens Style	Size / Dimension [diameter]	Mounting Type	Current - Test	Lens Transparency	Viewing Angle	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Color	Lens Size [diameter]	Supplier Device Package [diameter]	Height (Max) [Max]	Supplier Device Package	Supplier Device Package	Wavelength - Peak [custom]
Kingbright WP9294SYC/J3	Yellow	Radial	Standard	590 nm	590 nm	Round with Domed Top	4.8 mm	Through Hole	20 mA	Clear	130 °	4.85 mm	2 V	700 mcd	Colorless	4.8 mm Dia	5 mm
Kingbright WP9294QBC/D	Blue	Radial	Standard	460 nm	465 nm	Round with Domed Top	4.8 mm	Through Hole	20 mA	Clear	70 °		3.3 V	500 mcd	Colorless	4.8 mm Dia		5.05 mm	Round	5 mm
Kingbright WP9294QBC/G	Blue	Radial	Standard	461 nm	465 nm	Round with Domed Top	4.8 mm	Through Hole	20 mA	Clear	60 °	4.85 mm	3.3 V	700 mcd	Colorless	4.8 mm Dia	5 mm
Kingbright WP9294SEC/J3	Red	Radial	Standard		625 nm	Round with Domed Top	4.8 mm	Through Hole	20 mA	Clear	130 °	4.85 mm	2.2 V	700 mcd	Colorless	4.8 mm Dia	5 mm				640 nm
Kingbright WP9294SECK/J3	Red	Radial	Standard		625 nm	Round with Domed Top	4.8 mm	Through Hole	20 mA	Clear	130 °		2.2 V	900 mcd	Colorless	4.8 mm Dia	5 mm	5.05 mm			640 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 465nm LED Indication - Discrete 3.3V Radial
