1447SC10

Obsolete

Hammond Manufacturing

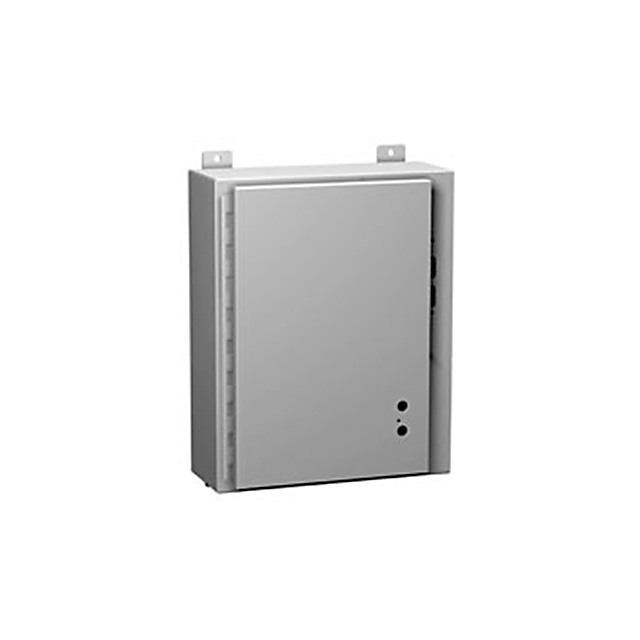

BOX STEEL GRAY 24"L X 25.380"W

Deep-Dive with AI

Search across all available documentation for this part.

1447SC10

Obsolete

Hammond Manufacturing

BOX STEEL GRAY 24"L X 25.380"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1447SC10

Area (L x W)	609 in²
Area (L x W)	3929 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Interior Panels
Height [z]	10 in
Height [z]	254 mm
Material	Metal, Steel
Ratings	UL-508, NEMA 13, IP54, JIC EGP-1-1967, NEMA 12
Size / Dimension [x]	644.65 mm
Size / Dimension [x]	25.38 in
Size / Dimension [y]	24 "
Size / Dimension [y]	609.6 mm
Thickness	14 Gauge
Weight	32.2 kg
Weight	71 lbs

1447 Series

Part	Color	Ratings	Height [z]	Height [z]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Thickness	Area (L x W)	Area (L x W)	Weight	Weight	Design	Material	Area (L x W) [custom]	Area (L x W) [custom]	Shipping Info	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1447SN4SSC8	Natural	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	8 "	203.2 mm	Interior Panels	24 "	644.65 mm	609.6 mm	25.38 in	Box	14 Gauge	609 in²	3929 cm²	73 lbs	33.1 kg	Hinged Door Lid
Hammond Manufacturing 1447SB10	Gray	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	10 in	254 mm	Interior Panels	21.38 in	609.6 mm	543.05 mm	24 in	Box	14 Gauge	513 in²	3310 cm²	63 lbs	28.6 kg	Hinged Door Lid	Metal Steel
Hammond Manufacturing 1447SN4C8	Gray	IP66 JIC EGP-1-1967 NEMA 12 NEMA 3R NEMA 4 UL-508	8 "	203.2 mm	Interior Panels	24 "	644.65 mm	609.6 mm	25.38 in	Box	14 Gauge	609 in²	3929 cm²	73 lbs	33.1 kg	Hinged Door Lid	Metal Steel
Hammond Manufacturing 1447SN4SSF8	Natural	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	8 "	203.2 mm	Interior Panels	25.38 in	914.4 mm	644.65 mm	36 "	Box	14 Gauge			100 lbs	45.4 kg	Hinged Door Lid		5897 cm²	914 in²	Drop shipped from the Manufacturer's Warehouse
Hammond Manufacturing 1447SN4SSB8	Natural	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	8 "	203.2 mm	Interior Panels	21.38 in	609.6 mm	543.05 mm	24 in	Box	14 Gauge	513 in²	3310 cm²	60 lbs	27.2 kg	Hinged Door Lid
Hammond Manufacturing 1447SG16	Gray	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	16 in	406.4 mm	Interior Panels	31.38 in	914.4 mm	797.05 mm	36 "	Box	14 Gauge			150 lbs	68 kg	Hinged Door Lid	Metal Steel			Drop shipped from the Manufacturer's Warehouse	1130 in²	7290 cm²
Hammond Manufacturing 1447SC10	Gray	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 UL-508	10 in	254 mm	Interior Panels	24 "	644.65 mm	609.6 mm	25.38 in	Box	14 Gauge	609 in²	3929 cm²	71 lbs	32.2 kg	Hinged Door Lid	Metal Steel
Hammond Manufacturing 1447SN4L12	Gray	IP66 JIC EGP-1-1967 NEMA 12 NEMA 3R NEMA 4 UL-508			Interior Panels	37.38 "	1524 mm	949.45 mm	60 "	Box	14 Gauge	2243 in²	1.447 m²	265 lbs	120.2 kg	Hinged Door Lid	Metal Steel			Drop shipped from the Manufacturer's Warehouse
Hammond Manufacturing 1447SN4K12	Gray	IP66 JIC EGP-1-1967 NEMA 12 NEMA 3R NEMA 4 UL-508			Interior Panels	37.38 "	1219.2 mm	949.45 mm	48 "	Box	14 Gauge	1794 in²	1.157 m²	220 lbs	99.8 kg	Hinged Door Lid	Metal Steel			Drop shipped from the Manufacturer's Warehouse
Hammond Manufacturing 1447SK10HK	Gray	IP54 JIC EGP-1-1967 NEMA 12 NEMA 13 NEMA 4 UL-508	10 in	254 mm	Interior Panels	37.38 "	1219.2 mm	949.45 mm	48 "	Box	14 Gauge	1794 in²	1.157 m²			Hinged Door Lid	Metal Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1447 Series

Box Metal, Steel Gray Hinged Door, Lid 25.380" L x 24.000" W (644.65mm x 609.60mm) X 10.000" (254.00mm)

Documents

Technical documentation and resources

No documents available
