011032CD031

Active

Essentra Access Solutions

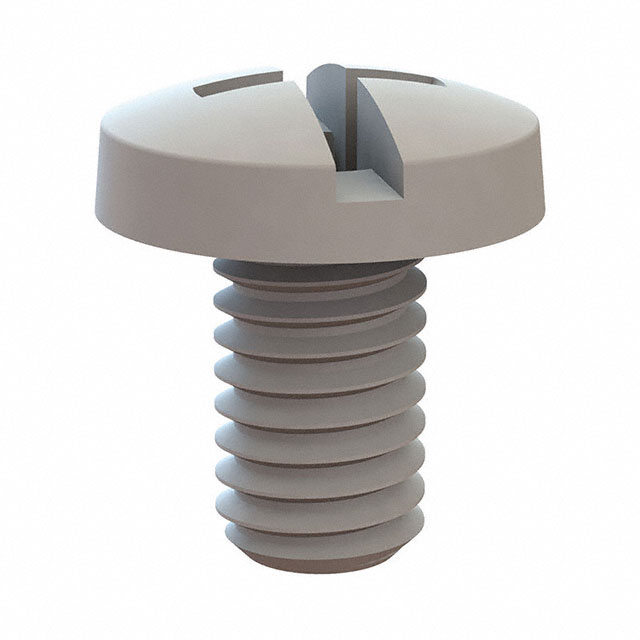

BINDER COMBINATION SCREW 10-32

Deep-Dive with AI

Search across all available documentation for this part.

011032CD031

Active

Essentra Access Solutions

BINDER COMBINATION SCREW 10-32

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	011032CD031

Drive Type	Combination
Head Diameter [diameter]	0.389 "
Head Diameter [diameter]	9.87 mm
Head Height [z]	5.97 mm
Head Height [z]	0.235 "
Length - Below Head [custom]	7.94 mm
Length - Below Head [custom]	0.313 in
Material	Nylon
Screw Head Type	Binding Head
Thread Size	#10-32
Type	Machine Screw

011032CD Series

Part	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Drive Type	Material	Length - Below Head [x]	Length - Below Head [x]	Type	Screw Head Type	Head Height [z]	Head Height [z]	Length - Below Head [custom]	Length - Below Head [custom]	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]
Essentra Access Solutions 011032CD125	0.389 "	9.87 mm	#10-32	Combination	Nylon	31.75 mm	1.25 in	Machine Screw	Binding Head	5.97 mm	0.235 "
Essentra Access Solutions 011032CD031	0.389 "	9.87 mm	#10-32	Combination	Nylon			Machine Screw	Binding Head	5.97 mm	0.235 "	7.94 mm	0.313 in
Essentra Access Solutions 011032CD062	0.389 "	9.87 mm	#10-32	Combination	Nylon			Machine Screw	Binding Head	5.97 mm	0.235 "			0.625 in	15.88 mm	0.625 in	0.86 "	21.84 mm
Essentra Access Solutions 011032CD043	0.389 "	9.87 mm	#10-32	Combination	Nylon			Machine Screw	Binding Head	5.97 mm	0.235 "	11.11 mm	0.438 in
Essentra Access Solutions 011032CD012			#10-32	Combination	Nylon			Machine Screw	Binding Head					0.125 in	3.18 mm	0.125 in	0.36 "	9.14 mm
Essentra Access Solutions 011032CD087	0.389 "	9.87 mm	#10-32	Combination	Nylon		0.875 in	Machine Screw	Binding Head	5.97 mm	0.235 "			22.23 mm	0.875 in
Essentra Access Solutions 011032CD175	0.389 "	9.87 mm	#10-32	Combination	Nylon	44.45 mm	1.75 in	Machine Screw	Binding Head	5.97 mm	0.235 "						1.985 "	50.42 mm
Essentra Access Solutions 011032CD075			#10-32	Combination	Nylon			Machine Screw	Binding Head					0.75 "	19.05 mm	0.75 "	0.985 in	25.02 mm
Essentra Access Solutions 011032CD150	0.389 "	9.87 mm	#10-32	Combination	Nylon		1.5 in	Machine Screw	Binding Head	5.97 mm	0.235 "				38.1 mm		1.735 in	44.07 mm
Essentra Access Solutions 011032CD081	0.389 "	9.87 mm	#10-32	Combination	Nylon	20.64 mm	0.813 in	Machine Screw	Binding Head	5.97 mm	0.235 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.07

Description

General part information

011032CD Series

#10-32 Binding Head Machine Screw Combination Drive Nylon

Documents

Technical documentation and resources

No documents available
