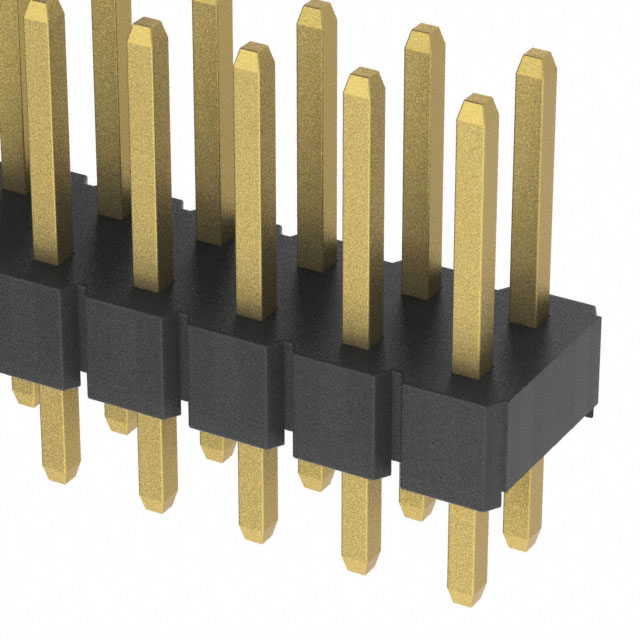

PH2-16-UA

Active

Adam Tech

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

PH2-16-UA

Active

Adam Tech

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PH2-16-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.97 mm
Contact Length - Mating [x]	0.235 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.453 in
Overall Contact Length	11.5 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

PH2 Series

Part	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Connector Type	Number of Contacts [custom]	Number of Rows	Mounting Type	Insulation Color	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Mating	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Termination	Contact Finish Thickness - Mating	Fastening Type	Contact Material	Number of Positions	Insulation Height [z]	Insulation Height [z]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating	Material Flammability Rating	Number of Positions
Adam Tech PH2-C25410-06-FVP	0.1 in	2.54 mm	2.54 mm	0.1 in	Compression Contact Female	6	2	Through Hole
Adam Tech PH2-16-UA					Header		2	Through Hole	Black	All	Unshrouded	Flash	250 VAC	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Male Pin	0.12 in	3.05 mm	Gold	2.54 mm	0.1 in	Square	Solder	Flash	Push-Pull	Brass	16	0.098 in	2.5 mm	3 A	105 ░C	-55 °C	0.453 in	11.5 mm	0.235 in	5.97 mm	UL94 V-0
Adam Tech PH2-06-UA					Header		2	Through Hole	Black	All	Unshrouded	Flash	250 VAC	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Male Pin	0.12 in	3.05 mm	Gold	2.54 mm	0.1 in	Square	Solder	Flash	Push-Pull	Brass		0.098 in	2.5 mm	3 A	105 ░C	-55 °C	0.453 in	11.5 mm	0.235 in	5.97 mm	UL94 V-0	6
Adam Tech PH2-04-UA					Header		2	Through Hole	Black	All	Unshrouded	Flash	250 VAC	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	Gold	Male Pin	0.12 in	3.05 mm	Gold	2.54 mm	0.1 in	Square	Solder	Flash	Push-Pull	Brass		0.098 in	2.5 mm	3 A	105 ░C	-55 °C	0.453 in	11.5 mm	0.235 in	5.97 mm	UL94 V-0	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.83
		10	$ 1.40
		100	$ 1.08
		500	$ 0.90
		1000	$ 0.84
		5000	$ 0.72
		10000	$ 0.67
