ISL6612CRZR5238

Obsolete

Intersil

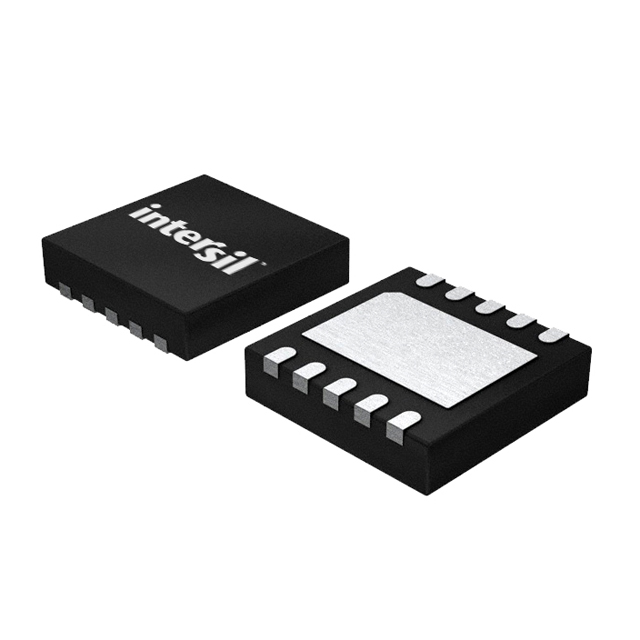

IC MOSFET DRVR SYNC BUCK 10-DFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ISL6612CRZR5238

Obsolete

Intersil

IC MOSFET DRVR SYNC BUCK 10-DFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISL6612CRZR5238

Channel Type	Synchronous
Current - Peak Output (Source, Sink) [custom]	1.25 A
Current - Peak Output (Source, Sink) [custom]	2 A
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET
Input Type	Non-Inverting
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	0 °C
Package / Case	10-VFDFN Exposed Pad
Rise / Fall Time (Typ) [custom]	18 ns
Rise / Fall Time (Typ) [custom]	26 ns
Supplier Device Package	10-DFN (3x3)
Voltage - Supply [Max]	13.2 V
Voltage - Supply [Min]	10.8 VDC

ISL6612 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Driven Configuration	Channel Type	Gate Type	Input Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers	Mounting Type	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Package / Case	Package / Case
Intersil ISL6612AIB	85 °C	-40 °C	13.2 V	10.8 VDC	Half-Bridge	Synchronous	N-Channel MOSFET	Non-Inverting	18 ns	26 ns	1.25 A	2 A	2	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in
Intersil ISL6612CRZR5238	125 ¯C	0 °C	13.2 V	10.8 VDC	Half-Bridge	Synchronous	N-Channel MOSFET	Non-Inverting	18 ns	26 ns	1.25 A	2 A	2	Surface Mount	10-DFN (3x3)	10-VFDFN Exposed Pad
Intersil ISL6612ECB	125 ¯C	0 °C	13.2 V	10.8 VDC	Half-Bridge	Synchronous	N-Channel MOSFET	Non-Inverting	18 ns	26 ns	1.25 A	2 A	2	Surface Mount	8-SOIC-EP	8-SOIC			0.154 in	3.9 mm
Intersil ISL6612ACB-T	125 ¯C	0 °C	13.2 V	10.8 VDC	Half-Bridge	Synchronous	N-Channel MOSFET	Non-Inverting	18 ns	26 ns	1.25 A	2 A	2	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in
Intersil ISL6612CB-T	125 ¯C	0 °C	13.2 V	10.8 VDC	Half-Bridge	Synchronous	MOSFET (N-Channel)	Non-Inverting	18 ns	26 ns	1.25 A	2 A	2	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in
Intersil ISL6612IBZ	125 ¯C	-40 °C	13.2 V	10.8 VDC	Half-Bridge	Synchronous	N-Channel MOSFET	Non-Inverting	18 ns	26 ns	1.25 A	2 A	2	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in
Intersil ISL6612CB	125 ¯C	0 °C	13.2 V	10.8 VDC	Half-Bridge	Synchronous	N-Channel MOSFET	Non-Inverting	18 ns	26 ns	1.25 A	2 A	2	Surface Mount	8-SOIC	8-SOIC	3.9 mm	0.154 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	247	$ 1.22

Description

General part information

ISL6612 Series

Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)
