THM 6-0522

Active

Traco Power

DC DC CONVERTER +/-12V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTHM 6 Certs Datasheet

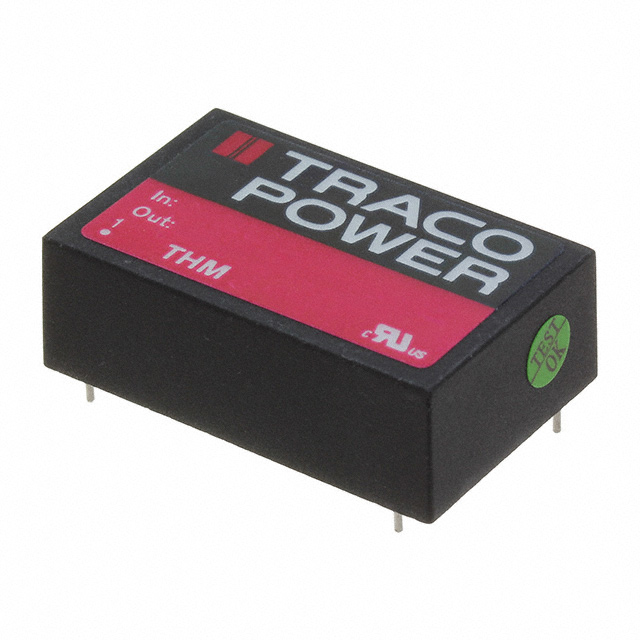

THM 6-0522

Active

Traco Power

DC DC CONVERTER +/-12V 6W

Deep-Dive with AI

DocumentsTHM 6 Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THM 6-0522

Applications	Medical
Current - Output (Max)	250 mA
Current - Output (Max)	250 mA
Efficiency	86.5 %
Features	SCP, OCP, OVP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module, 6 Leads
Power (Watts)	6 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	5000 V
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

THM 6 Series

Part	Mounting Type	Voltage - Input (Max) [Max]	Efficiency	Power (Watts)	Voltage - Input (Min) [Min]	Number of Outputs	Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Applications	Current - Output (Max) [Max]	Package / Case	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power THM 6-2412WI	Through Hole	36 V	89 %	6 W	9 V	1	Isolated Module	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	500 mA	24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	203 °F	5000 V
Traco Power THM 6-2415WI	Through Hole	36 V	88.5 %	6 W	9 V	1	Isolated Module	24 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	250 mA	24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	203 °F	5000 V
Traco Power THM 6-0513	Through Hole	9 V	87.5 %	6 W	4.5 V	1	Isolated Module	15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	400 mA	24-DIP Module 5 Leads	OCP OVP SCP	-40 °C	88 °C	5000 V
Traco Power THM 6-0522	Through Hole	9 V	86.5 %	6 W	4.5 V	2	Isolated Module	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical		24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	88 °C	5000 V	-12 V	250 mA	250 mA
Traco Power THM 6-2413WI	Through Hole	36 V	89 %	6 W	9 V	1	Isolated Module	15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	400 mA	24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	203 °F	5000 V
Traco Power THM 6-2421	Through Hole	36 V	85 %	6 W	18 V	2	Isolated Module	5 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	600 mA	24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	88 °C	5000 V	-5 V
Traco Power THM 6-0512	Through Hole	9 V	86 %	6 W	4.5 V	1	Isolated Module	12 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	500 mA	24-DIP Module 5 Leads	OCP OVP SCP	-40 °C	88 °C	5000 V
Traco Power THM 6-0515WI	Through Hole	9 V	86.5 %	6 W	4.5 V	1	Isolated Module	24 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	250 mA	24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	203 °F	5000 V
Traco Power THM 6-2423WI	Through Hole	36 V	88 %	6 W	9 V	2	Isolated Module	15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical		24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	203 °F	5000 V	-15 V
Traco Power THM 6-0513WI	Through Hole	9 V	86 %	6 W	4.5 V	1	Isolated Module	15 V	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Medical	400 mA	24-DIP Module 6 Leads	OCP OVP SCP	-40 °C	203 °F	5000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 49.29
		10	$ 45.30
