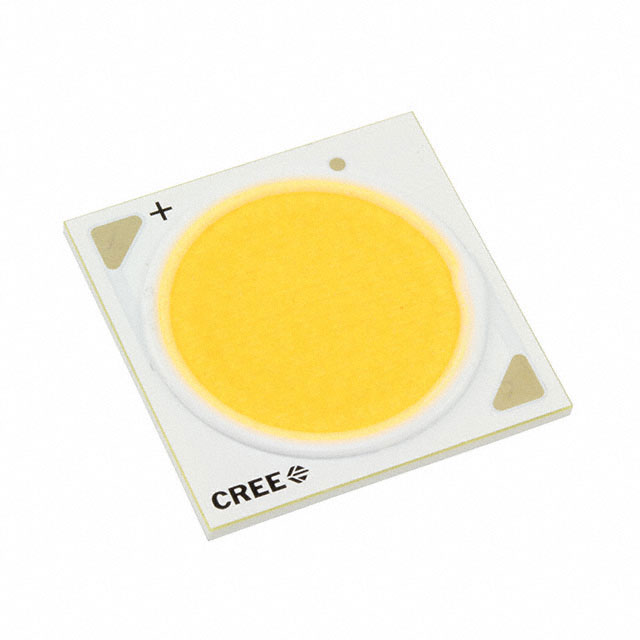

CXB3070-0000-000N0UZ230H

Active

Cree LED

XLAMP CXA GEN 2 LIGHT EMITTING DIODE WHITE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXB3070-0000-000N0UZ230H

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	2.8 A
Current - Test	1.9 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	23 mm
Lumens/Watt @ Current - Test	112 lm/W
Luminous Flux @ Current/Temperature	7668 lm
Size / Dimension [x]	27.35 mm
Size / Dimension [y]	27.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	36 V

CXB3070 Series

Part	Type	Current - Max [Max]	Current - Test	Height [z]	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Color	Voltage - Forward (Vf) (Typ)	Configuration	Lens Type	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Temperature - Test	Viewing Angle
Cree LED CXB3070-0000-000N0UZ227G	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	90	23 mm	2700 K	27.35 mm	27.35 mm	Warm White	36 V	Square	Flat	112 lm/W	7668 lm	85 °C	115 °
Cree LED CXB3070-0000-000N0HBD57E	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	80	23 mm	5700 K	27.35 mm	27.35 mm	Cool White	36 V	Square	Flat	154 lm/W	10500 lm	85 °C	115 °
Cree LED CXB3070-0000-000N0UAB50G	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	90	23 mm		27.35 mm	27.35 mm	Cool White	36 V	Square	Flat	128 lm/W	8750 lm	85 °C	115 °
Cree LED CXB3070-0000-00PN0U0A27H	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	90	23 mm	2700 K	27.35 mm	27.35 mm	Warm White	36 V	Square	Flat			85 °C	115 °
Cree LED CXB3070-0000-000N0UZ230H	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	90	23 mm	3000 K	27.35 mm	27.35 mm	Warm White	36 V	Square	Flat	112 lm/W	7668 lm	85 °C	115 °
Cree LED CXB3070-0000-00PN0U0A40G	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	90	23 mm	4000 K	27.35 mm	27.35 mm	Neutral White	36 V	Square	Flat			85 °C	115 °
Cree LED CXB3070-0000-00PN0U0A30U	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	90	23 mm		27.35 mm	27.35 mm	White	36 V	Square	Flat			85 °C	115 °
Cree LED CXB3070-0000-00PN0U0A31Q	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	90	23 mm		27.35 mm	27.35 mm	White	36 V	Square	Flat			85 °C	115 °
Cree LED CXB3070-0000-00PN0Z0A40H	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm		23 mm	4000 K	27.35 mm	27.35 mm	Neutral White	36 V	Square	Flat			85 °C	115 °
Cree LED CXB3070-0000-000N0HAB27H	Chip On Board (COB)	2.8 A	1.9 A	1.7 mm	80	23 mm	2700 K	27.35 mm	27.35 mm	Warm White	36 V	Square	Flat	128 lm/W	8750 lm	85 °C	115 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 24.21
Newark	Each	100	$ 19.94
		250	$ 19.37

Description

General part information

CXB3070 Series

The XLamp® CXB3070 LED Array is a member of the second generation of the CXA family that delivers up to 30% higher efficacy and up to 20% higher lumens than the first generation in the same LES. The higher performance second generation CXA LED Arrays prov23-mm optical source • Mechanical and optical design consistent with other CXA30 and CXB30 LEDs • Available in 70-, 80- and 90-minimum CRI options • Cree EasyWhite® 2-, 3- and 5-step binning • Forward voltage option: 36-V class • 85 °C binning and charact
