Q-0K03T000R009i

Active

Amphenol Custom Cable

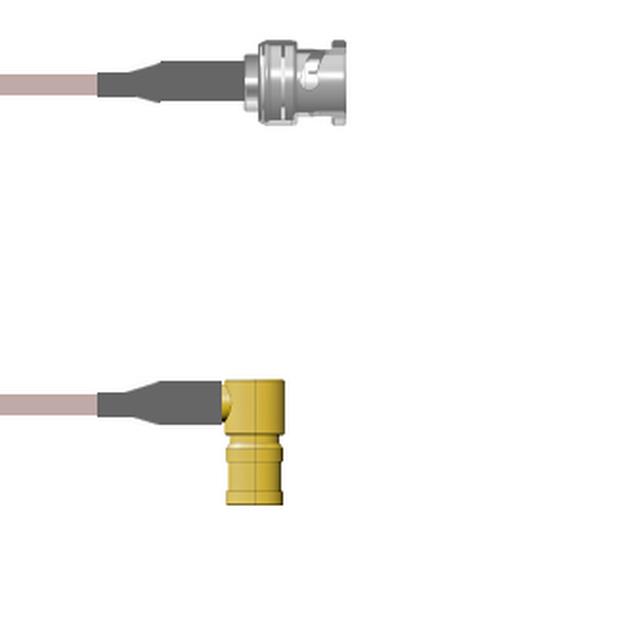

CBL ASSY BNC-SMB PLUG-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0K03T000R009i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB PLUG-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0K03T000R009i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0K03T0 Series

Part	Cable Type	Length	Length	Length	Frequency - Max [Max]	2nd Connector Mounting Type	Style	1st Contact Gender	2nd Connector	Features	Overall Impedance	Color	1st Connector	1st Connector Mounting Type	2nd Contact Gender	Length [x]	Length [x]
Amphenol Custom Cable Q-0K03T000R003M	RG-316 DB	3 m	118.1 in	9.8 '	4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R012i	RG-316 DB	304.8 mm	12 "		4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R.75M	RG-316 DB	750 mm	29.53 "		4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R009i	RG-316 DB	228.6 mm	9 "		4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R002M	RG-316 DB	2 m	78.7 in	6.6 ft	4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R003i	RG-316 DB	76.2 mm	3 in		4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R001M	RG-316 DB	1 m	39.4 in	3.3 ft	4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R006i	RG-316 DB	152.4 mm	6 in		4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R024i	RG-316 DB	609.6 mm	24 "		4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male
Amphenol Custom Cable Q-0K03T000R.25M	RG-316 DB				4 GHz	Free Hanging (In-Line)	BNC to SMB	Male	SMB Plug Right Angle	Shielded	50 Ohms	Copper	BNC Plug	Free Hanging (In-Line)	Male	9.843 "	250 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 112.34
		25	$ 110.14
		50	$ 107.94
		100	$ 105.74
		250	$ 103.55

Description

General part information

Q-0K03T0 Series

Cable Assembly Coaxial BNC to SMB RG-316 DB 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
