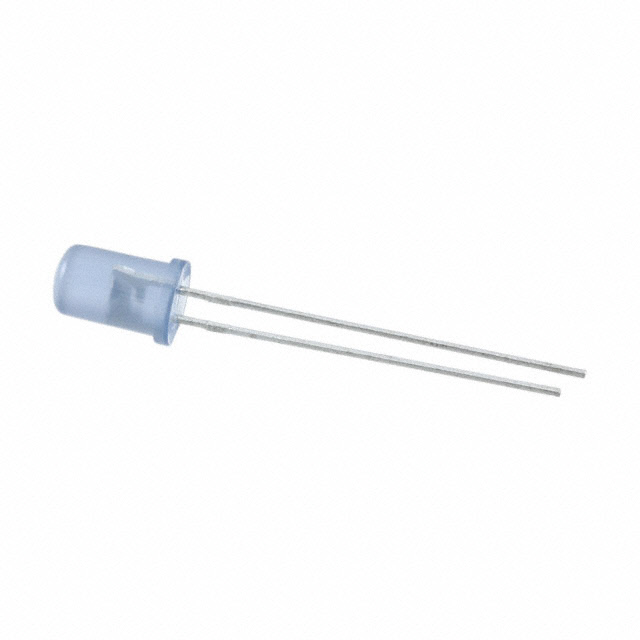

WP7083QBD/G

Active

Kingbright

LED BLUE DIFFUSED T-1 3/4 T/H

Search across all available documentation for this part.

Active

Kingbright

LED BLUE DIFFUSED T-1 3/4 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Style	Wavelength - Dominant	Size / Dimension [diameter]	Lens Size	Lens Size	Height (Max) [Max] [z]	Current - Test	Millicandela Rating	Lens Color	Viewing Angle	Lens Transparency	Wavelength - Peak	Color	Configuration	Wavelength - Peak [custom]
Kingbright WP7083QBD/G	Through Hole	T-1 3/4	3.3 V	Radial	Round with Domed Top	465 nm	5 mm	T-1 3/4	5 mm	8.6 mm	20 mA	360 mcd	Blue	60 °	Diffused	461 nm	Blue	Standard
Kingbright WP7083SYD/J3	Through Hole	T-1 3/4	2 V	Radial	Round with Domed Top	590 nm	5 mm	T-1 3/4	5 mm	8.6 mm	20 mA	1000 mcd	Yellow	60 °	Diffused	590 nm	Yellow	Standard
Kingbright WP7083SED/J3	Through Hole	T-1 3/4	2.2 V	Radial	Round with Domed Top	625 nm	5 mm	T-1 3/4	5 mm	8.6 mm	20 mA	1200 mcd	Orange	60 °	Diffused		Red	Standard	640 nm
Kingbright WP7083ZGD/G	Through Hole	T-1 3/4	3.2 V	Radial	Round with Domed Top	525 nm	5 mm	T-1 3/4	5 mm	8.6 mm	20 mA	2200 mcd	Green	60 °	Diffused	520 nm	Green	Standard
Kingbright WP7083SEDK/J3	Through Hole	T-1 3/4	2.2 V	Radial	Round with Domed Top	625 nm	5 mm	T-1 3/4	5 mm	9.85 mm	20 mA	1500 mcd	Orange	60 °	Diffused		Red	Standard	640 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 465nm LED Indication - Discrete 3.3V Radial
